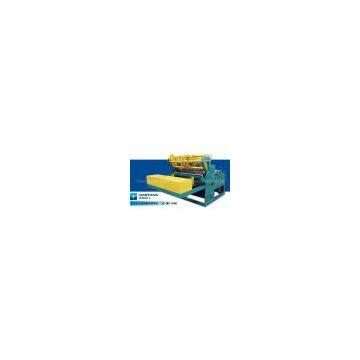

Welded Mesh Machine

Brand Name	jiaoyang		Place of Origin	China
Model Number	GWC-1200D

This machine adopts synchronous control techinque,both the welding time and cent-control welding is composed of digital and integrated electric circuit.this operation is accurate,it has stabl fucntion,firm welded point and withous welded tracks.not only welding speed is fast but also it is easy to learn and operate.the line wires are fed from rolls and through precise wire straighttening and positioning devise.step motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate,the edges of mesh are regular,it is unnecesary to slice the side.drawing mesh adopts the divece with the elastic tension link and fixing the mesh ,it is easy to regualte mesh holes and mesh size is rather accurate,welding spertures could also adjust randomly within the range.the speed of this machine is very fast,it is easy to learn and only needs two workers to operate.the finished mesh could be in rolls or in panels.
wire diameter:3-5mm
space of cross wires:50*50-00*200mm
space of line wires:50*50-200*200mm
width of mesh:1200/2100/2500mm
welding speed:60time/min
number of electrodes:48
feeding of line wire:continues
feeding of cross wires:pre-straightened and cut
rated electrical power:125kva*6
run area:18*7m
external power required:160kva 100m 120-150mm square aluminum
number of operation:1
compression spring:5*12*150
motor:1600mm  3kw 2100mm 4kw
pole pieces:35*35*18
transformer:1600mm  4  2100mm  5  2500mm  6  125kva
