Orton 9500HD

Opticum 9500HD, Orton 9500HD,Globo 9500HD

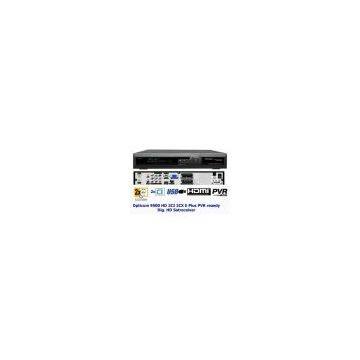

Opticum 9500 HD 2CI 2CX E Plus PVR ready (AT88SC)

Technische Daten:
-  MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant
-  8000 channels (TV and Radio) programmable
-  Multilingual menu text support
-  Channel switching time less than 1 second
-  Channel list editing
-  Favorite channel list editing
-  True-color On-Screen Display (OSD)
-  Full Picture In Graphic (PIG) function
-  Electronic Program Guide (EPG) for on screen channel information
-  Subtitle supported
-  Teletext supported by VBI insertion and software emulation
-  Parental lock facility by channel and program event
-  Program and Channel information transfer from receiver to receiver
-  Exciting games embedded
-  S/PDIF for digital audio or Dolby AC-3 bitstream output
-  DiSEqC 1.0, 1.1, 1.2 and USALS
-  HDMI HD Video/Audio Output
-  Dual Decoding (PIP)
-  Software update via LAN port
-  USB 2.0 Host
-  VFD Display for service information
-  RTC (Real-Time-Clock)
-  LAN 10/100 Mbps Ethernet (optional)
-  Time Shift (optional, only for PVR Ready receivers)
-  Video Recording (optional, only for PVR Ready receivers)
-  Recording 2 channels the same time, watching 3rd channel (within 1 transponder) (optional, only for PVR Ready receivers)
-  Recording one channel and TimeShifting another channel (optional, only for PVR Ready receivers)
-  Recording one channel and PIP another channel within the same transponder (optional, only for PVR Ready receivers)

General Data:
-  2xCard Reader slot with Conax embedded
-  2xCommon Interface slot for CAM modules
-  Ethernet supported
-  USB 2.0 Host support
-  HDMI supported
-  Video resolution 1080i, 720p, 576p, 576i
-  Software & Channel Database Transfer via USB
-  Blind scan
-  Multi-LNB Controlled by DiSEqC control Version 1.0, 1.1, 1.2 and USALS
-  Teletext support
-  Multi picture display
-  Powerful channel control by favorites, lock, skip, move and delete
-  Multi-language supported (OSD & Menu)
-  Optical Output for Digital Audio

System Resources:
-  Main Processor: 400 MIPPS based CPU
-  Flash Memory: 8Mbytes [Optional Expand]
-  DDR SDRAM: 1024+512Mbits [Optional Expand]

Tuner/Channel:
-  1tuner: Decoding
-  Input Connector: F-Type, Connector, Female
-  Loop Through: F-Type, Connector, Female
-  Signal Level: -65 to -25 dBm
-  LNB Power & Polarization:
   -Vertical: +13V/+14V
   -Horizontal: +18V/+19V
   -Current: Max 500mA
   -Overload Protection

-  22KHz Tone: Frequency: 22±1KHz
-  DiSEqC Control: Amplitude: 0,6±0,2V, Version 1.0, 1.1, 1.2, USALS Available
-  Demodulation: 8PSK/QPSK
-  Input Symbol Rate: 2-45 Mbps, Convolution Code rate 1/2
-  2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding:
-  Transport Stream: MPEG-2/H.264
-  Input Data Rate: 120Mbit/s max
-  Aspect Ratio: 4:3, 16:9, Letter Box
-  Video Decoding: 1920x1080i
-  Video Resolution: 720x576 (PAL), 720x480 (NTSC)
-  Audio Decoding: MPEG-1 Layers 1/2, Dolby AC-3
-  Audio Mode: Left / Right / Stereo
-  Sampling Rate: 33KHz, 44,1KHz, 48KHz

A/V & Data Input/Output:
-  TV-SCART: Video CVBS/RGB output, Audio L/R output
-  VCR SCART: Video CVBS output, Audio L/R output, Video CVBS, RGB input, Audio L/R input
-  RCA A/V: 1x YPbPr output, Video CVBS output, Audio 2x L/R output
-  S/PDIF: Optical, Coaxial Digital Audio or Dolby AC-3 Bit Stream Output
-  RS-232C: Transfer rate 115,2Kbps, 9 pin D-sub type
-  USB: USB 2.0, Compatible w/independent power supply output
-  HDMI: VER1.2 Type A

RF-Modulator (Optional):
-  PLL type: CH21~69 for the Demodulation
-  TV Standard: PAL BG/I/DK selectable
-  RF Connector: 75 Ohms, Male/Female
-  Frequency Range: UHF : 470~860MHz

Power Supply:
-  Input Voltage: 100-250 VAC, 50/60Hz
-  Type: SMPS
-  Power Consumption: 30W Max.
-  Protection: Separate Internal Fuse and Chassis Grounding. The input shall have lighting or electric shock protection

Physical Specification:
-  Size[W*H*D]: 360mm x 266mm x 65mm
-  Net Weight: 2,49 kg

Environment:
-  Operation Temperature: 0°C~+45°C
-  Storage Temperature: -10°C~+70°C
-  Storage Humidity: 5~95°RH (Non Condensing)
