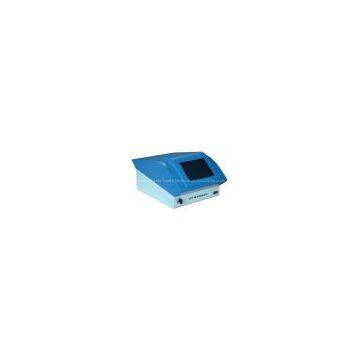

ZRY 3E Pyrogen Tester

The pyrogen test involves measuring the rise in temperature of rabbits following the intravenous injection of a test solution and determine products that can be tolerated by the test rabbit in a dose injected. ZRY 3E Pyrogen Tester inspect the change of rabbit temperature automatically, applied in pyrogen inspection for pharmaceutical and biological products with researching pharmacology of febrifuge.

Features

1. Probe can be changed during the test without test result affected
2. Probe has long-time stabilization, no need to calibrate in several years after leave-factory calibration. Only validity check in a fixed time is required
3. Management of rabbit’s files, record weight, temperature, data, injection, etc
4. Selectable print function. Printer can print out report in regulated form by operator
   required or on company report paper
5. Pyrogen Software has the function to select test method of pharmacopoeia and biologics regulation, e.g.CHP, USP, EP, JP and etc. or set new methods about test period and test times by operator required
6. Test several samples in simultaneity and grouping function ensures grouping and injection time, two operators can easily do grouping and injection
7. Reprovision of the probe calibration box, the probe calibration is more convenient and accurate
8. It is possible to work for a long time using the battery because of low-power design
9. Be equipped with intelligent power that usually chargs and maintains storage batteries automatically
10. It can continue to work at least 5 hours or more in power failure to ensure that test can be finished
11. 10-inch color touch screen, intuitive and convenient operation, as well as keyboard and mouse can be inserted in order to facilitate entering more content
12. Reliable operating system, software platform adopt a system of automatic protection which restore the original state of the system in each switching itself,  keeps your computer away from virus. Can be set to not use U disk, use U disk to make a copy with test data only after you'll need to enter your password
13. Equipped with automatic monitoring module for temperature and humidity of animal room, can automatically monitor record and changes for temperature and humidity of the animal room. Not to use the automatic function but manual input
14. Automatic data input devices link electronic scale, Rabbit weight, rabbit numbers and the position number are entered into the instrument software through Detection Network. A rabbit is arrested in the animal room and was added to automatically weight rabbit body, type of rabbit numbers and select the installation location
15. Equipped with liquid preheating box which preheat the liquid ahead of experiment to avoid injecting into rabbits with cold liquid and causing a stimulus so that a rabbits’ temperature suddenly drop
16. Configuration: Constant Temperature Water Bath, Weighing Module, Temperature and Humidity Module, Preheating Liquid Apparatus, Radio Alarm, Probe Calibrator

Specification

1. Test Temperature Range:  0°C ~50°C
2. Temperature Accuracy:  <±0.1°C (32°C~44°C)
3. Number of Probe:  ≤96, 3 probes in one group
4. Work Temperature:  10°C~30°C
5. Humidity:  ≤80%
6. Power Supply:  110~240VAC  ≤ 40W
7. Dimension:  360×580×280 mm
