Home > Products > CNC ROUTER > High_accuracy_cnc_engraver

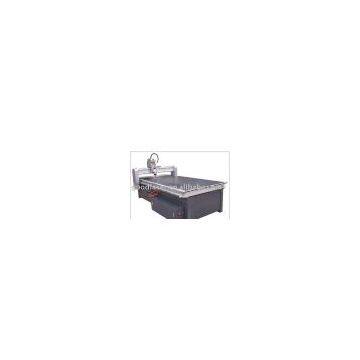

High_accuracy_cnc_engraver
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | JINDIAO | Place of Origin | China | |
| Model Number | JD1325 |
Product Description
lengthen the X and Y axis, can be used for large scale material processing. Adopted international leading parts, cost performance is high. Optional auto change knife system.
They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity. Well adapted to engrave and cut on Density board, solid wood panel, also engrave 3D archaistic furniture.
With JDs vacuum table we allow for both Mechanical and Vacuum fixturing. What does this mean? If you are processing sheets of material such as MDF, Melamine, Plastic, Foam or any other sheet like material, vacuum hold-down is an excellent solution. If you are processing small or irregular shaped products, heavy material, then you may want to utilize mechanical clamps.
It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly. So it is guaranteed not to out of shape and shake when it works for a long time.
JD1325B is upgraded to meet the requirements of users. It will be faster and more efficient. The traveling speed can reach 32m/m
|
model |
JD1325A (ordinary) |
JD1325B (update) |
|
X,Y working area |
1300x2500mm |
1300x2500mm |
|
Z Max working area |
110mm |
110mm |
|
Table size |
1400x3000mm |
1400x3000mm |
|
Max. Speed |
17m/min |
35m/min |
|
Feeding height |
120mm |
120mm |
|
Repositioning Accuracy |
0.05mm |
0.05mm |
|
Working-holding |
mechanical clamps |
by suction |
|
Control system |
Computer control |
DSP handle control systemoptional USB interface |
|
Power (not include the spindle) |
1500w |
1500w |
|
Work Mode |
Stepper |
Stepper |
|
Spindle power |
2.2kw |
2.2kw, optional 3kw,4.5kw |
|
Power |
AC220V/50Hz |
AC220V/50Hz; AC380V |
|
Surrounding for software |
Windows98/2000/xp |
Windows98/2000/xp |
