Product Details
| Brand Name | GCOM | Place of Origin | China | |
| Model Number | EL5600-PWR-AC |
Product Description
Certification:CE, FC, UL, CCC

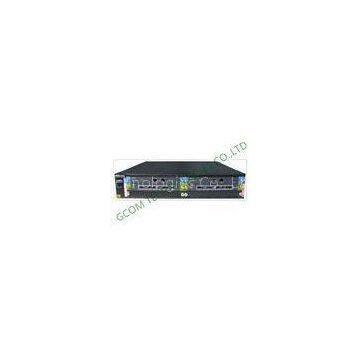

220V AC Power Supply GEPON OLT SSHv2 Secure Shell with 128Bits EL5600-PWR-AC
Overview
EL5600-06 OLT is a high performed, high density and module OLT which is for the demands as fiber accessing of the last 1km to the telecom operators, customer broadband accessing solution, innovation of bidirectional HFC network and triple play (HD video monitoring transmission with voice and video integrated access) of government, police and large-scale enterprise. The power supply and the fan ensure the reliable operation of the device and meet the high-reliable OLT requirements of telecom carrier customers and industrial users.The power supply and the fan ensure the reliable operation of the device and meet the high-reliable OLT requirements of telecom carrier customers and industrial users.
Product Specification
| Item | OptiWay EL5600-06 |
| Backplane capacity | >480Gbps |
| Interface switching capacity | 240Gbps |
| Forwarding capacity (IPv4/IPv6) | 72Mpps |
| Qty of total slots | 6 |
| Qty of line slots | 5 |
| Service interface | Up to 20*GEPON or 24*GE |
| Redundancy design | 1+1 power redundancy |
| Power |
AC:Input 90～260V,50～60Hz； DC:Input -36V～-72V； |
| Power consumption | ≤120W |
| Dimensions (width x depth x height) | 436mm×86mm×340mm |
| Weight (Full-loaded) | ≤12kg |
| Environmental requirements |
Working temperature:0°C～40°C Storage temperature:-40°C～70°C Relative humidity:10%～90%,non-condensing |
Purchase Information
| Product name | Product description |
| EL5600-06 | Core 10GE routing switch chassis(no power, support up to 2*power supplies, 6*extended slots, one is main control extended slot, 5*business extended slot) |
| EL5600-06-MPU | EL5600-06,main control card, fixed 4*1000Base-X SFP ethernet ports |
| EL5600-06-4PON | EL5600-06,EPON card,4*EPON SFP(require SFP EPON optical module) |
| EL5600-06-4GE4 | EL5600-06,ethernent business card,4*ComboGE(1000Base-X SFP or 10/100/1000Base-T) |
| EL5600-PWR-AC | EL5600-06,220V AC power supply module |
| EL5600-PWR-DC | EL5600-06,-48V DC power supply module |
Business Features
