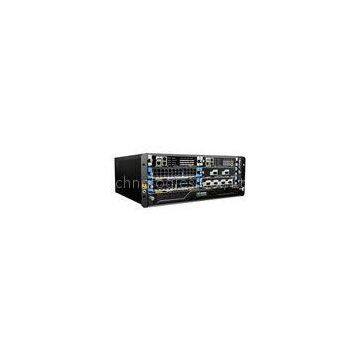

IEEE 802.3ah OLT Optical Line Termination , 6 Slots FTTx Chassis EPON OLT S8600-04
- T/T L/C D/P D/A
- 7 days
You May Like
-
Telnet Managed Layer 2 Switch 10GB SFP+ 4 port 50-60 Hz S5330-52TX
-
60W Layer 2 Gigabit Switch 20 100/1000Base-X , Ethernet Layer 2 Switch S5330-28SX
-
1200W FTTx 18 Slots GEPON OLT Chassis 2860Mpps 6.4Tbps Backplane capacity
-
Layer 2 Gigabit Switch With 24 10/100/1000BaseT , L2 Managed Switch S5300-28TC
-
44 10/100/1000Base T Layer 2 Managed Switch , S5300-52TM 48 Port Layer 2 Switch
-
Gigabit Layer 3 Switch 24 Port with 10 / 100 / 1000Base-X GE Combo S5650-28SM
Product Details
| Brand Name | GCOM | Place of Origin | China | |
| Model Number | S8600-04 |
Product Description
Certification:CE, FC, UL, CCC
IEEE 802.3ah OLT Optical Line Termination , 6 Slots FTTx Chassis EPON OLT S8600-04
Overview
S8600 series are designed for high-density access switching integrated platform which combine multi-service and high-density 10G EPON OLT requirement, they are deployed for high-density EPON OLT as carrier broadband access network .S8600 series have the unique half-size slot service cards for the highest density EPON/GPON/10GE/10GEPON port and terabit switching net can provide the ability of 40/100G future upgrade switching and smooth upgrade access platform. S8600 series have the first innovation processing architecture with fully distributed based on 64-bit multi-core processors and high performance AISC.
Business Features
| ? | S8600 series | |
|
PON features |
IEEE 802.3ah EPON China telecom/Unicom GEPON standard 20Km for single fibber Access 64 terminals for single fibber PON Uplink and downlink triple churning encrypted function ONU terminal legitimacy certification, report illegal ONU registration DBA algorithm Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade PON transmit and inspect receiving optical power |
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit MAC address limitation based on ONU |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (StackVLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) ONU remote loop detecting alarm |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
| Security features | User security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication TACACS+ authentification dhcp anti-attack flood attack automatic suppression ONU isolation control |
| Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF,RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
| IP routing | IPv4 |
ARP Proxy DHCP Relay DHCP Server Static route RIPv1/v2 OSPFv2 BGPv4 Strategy route Route policy |
| IPv6 |
ICMPv6 ICMPv6 redirection DHCPv6 ACLv6 OSPFv3 RIPng BGP4+ Configured Tunnel ISATAP 6to4 tunnel IPv6 and IPv4 Tunnels |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification a Contact Us
