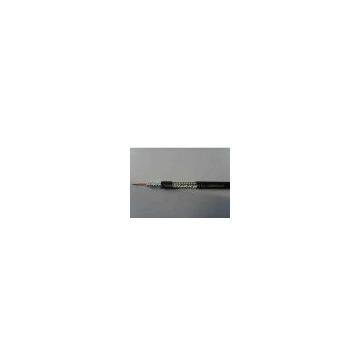

5D,7D,8D,10D,12D-FB series coaxial cable
Negotiable
/ Piece
20 Pieces(Min.Order)
-
100000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
| Brand Name |
XINGFA OR OEM |
|
Place of Origin |
China |
| Model Number |
5D,7D,8D,10D,12D-FB |
|
Product Description
| 5D-FB Coaxial Cable 1) Construction |
|
| Center Conductor: |
1.80mm Solid Copper |
|
| Dielectric: |
5.00+0.02mm Foam PE |
|
| Shield: |
Bonded Al Foil |
|
| Braid Coverage: |
85%TC |
|
| Jacket: |
7.50+0.10mm PVC |
|
| Jacket Thickness: |
0.80mm |
|
| 2) Characteristics |
|
| Inner Conductor Resistance: |
1.16 ohm/km |
| Dielectric Withstand Voltage: |
1000 ACV/min |
| Impedance: |
50+2Ohm |
| Capacitance: |
85+3nF/Ft (Nom.) |
| Echo Loss: |
VHF: 20 dB/ UHF 18 dB | |
|
| 3) Attenuation |
|
| Attenuation |
[@68o F. (20o C.)] |
| Frequency (MHz) |
Nom.(dB/100 ft.) |
| 50 |
4.89 |
| 100 |
6.47 |
| 200 |
9.01 |
| 400 |
13.00 |
| 900 |
20.50 |
| 1000 |
21.70 |
| 1500 |
27.40 |
| 2000 |
32.30 | |
| 7D-FB Coaxial Cable 1) Construction |
|
| Center Conductor: |
2.60mm Solid Copper |
|
| Dielectric: |
7.30+0.02mm Foam PE |
|
| Shield: |
Bonded Al Foil |
|
| Braid Coverage: |
85%TC |
|
| Jacket: |
8.20+0.10mm PVC |
|
| Jacket Thickness: |
0.80mm |
|
| 2) Characteristics |
|
| Inner Conductor Resistance: |
1.83 ohm/km |
| Dielectric Withstand Voltage: |
1000 ACV/min |
| Impedance: |
50+2Ohm |
| Capacitance: |
85+3nF/Ft (Nom.) |
| Echo Loss: |
VHF: 20 dB/ UHF 18 dB | |
|
| 3) Attenuation |
|
| Attenuation |
[@68o F. (20o C.)] |
| Frequency (MHz) |
Nom.(dB/100 ft.) |
| 150 |
5.30 |
| 280 |
7.30 |
| 350 |
8.30 |
| 400 |
9.10 |
| 800 |
13.00 |
| 900 |
14.30 |
| 1200 |
17.00 |
| 1500 |
19.70 |
| 1900 |
22.90 | |
| 8D-FB Coaxial Cable 1) Construction |
|
| Center Conductor: |
2.80mm Solid Copper |
|
| Dielectric: |
7.80+0.02mm Foam PE |
|
| Shield: |
Bonded Al Foil |
|
| Braid Coverage: |
85%TC |
|
| Jacket: |
8.80+0.10mm PVC |
|
| Jacket Thickness: |
0.80mm |
|
| 2) Characteristics |
|
| Inner Conductor Resistance: |
2.86 ohm/km |
| Dielectric Withstand Voltage: |
1000 ACV/min |
| Impedance: |
50+2Ohm |
| Capacitance: |
85+3nF/Ft (Nom.) |
| Echo Loss: |
VHF: 20 dB/ UHF 18 dB | |
|
| 3) Attenuation |
|
| Attenuation |
[@68o F. (20o C.)] |
| Frequency (MHz) |
Nom.(dB/100 ft.) |
| 50 |
3.00 |
| 100 |
4.07 |
| 200 |
5.65 |
| 400 |
8.29 |
| 900 |
13.00 |
| 1000 |
13.70 |
| 1500 |
18.30 |
| 2000 |
22.30 | |
| 10D-FB Coaxial Cable 1) Construction |
|
| Center Conductor: |
3.50mm Solid Copper |
|
| Dielectric: |
10.0+0.02mm Foam PE |
|
| Shield: |
Bonded Al Foil |
|
| Braid Coverage: |
85%TC |
|
| Jacket: |
13.0+0.10mm PVC |
|
| Jacket Thickness: |
1.0mm |
|
| 2) Characteristics |
|
| Inner Conductor Resistance: |
3.31ohm/km |
| Dielectric Withstand Voltage: |
1000 ACV/min |
| Impedance: |
50+2Ohm |
| Capacitance: |
85+3nF/Ft (Nom.) |
| Echo Loss: |
VHF: 20 dB/ UHF 18 dB | |
|
| 3) Attenuation |
|
| Attenuation |
[@68o F. (20o C.)] |
| Frequency (MHz) |
Nom.(dB/100 ft.) |
| 150 |
4.10 |
| 280 |
5.60 |
| 350 |
6.30 |
| 400 |
6.90 |
| 800 |
10.20 |
| 900 |
11.10 |
| 1200 |
13.40 |
| 1500 |
15.30 |
| 1900 |
17.70 | | | |
