CCW Rotation Hybrid Stepper Motors 10N Max Axial Force Insulation Class B
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Indoor Printer Hybrid Stepper Motors 39HSD Series 1.8 degree step angle 39mm*39mm square size
-
PC Peripheral Devices Hybrid Stepper Motors 39HSM Series 0.9 Degree Step Angle 39mm Square Size
-
Industrial Control System 4 Lead Stepper Motor , Hybrid Servo Motor 42HSD Series
-
12 - 48V dc Brush Electric Winch Motors Insulation Class F -20C - +40C Operational Temp
-
Hybrid Stepper Custom Servo Motors 42HSM Series 0.9 Degree Step Angle 42 mm * 42 mm Square Size
-
Hybrid Electric Motor 12v 24v , Permanent Magnet Brush Dc Electric Car Motor
Product Details
| Brand Name | 3X MOTION | Place of Origin | China | |
| Model Number | 35HSM SERIES |
Product Description
Certification:ISO9000. ROHS. CE

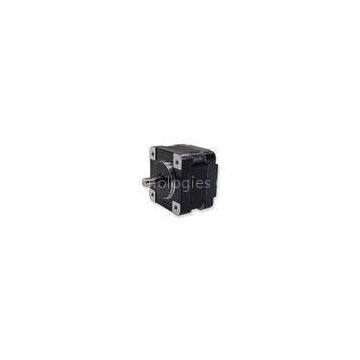

Hybrid Stepper Motors 35HSM Series 0.9 degree step angle 35mm*35mm square size for inkjet printer
General specification
|
Step Angle Accuracy |
±5%(full step, no load) |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy?? |
±20% |
|
Temperature Rise?? |
80℃max (rated current, 2 phase on) |
|
Ambient Temperature? |
?-20℃~+50℃ |
|
Insulation Resistance? |
100MΩ min,500VDC |
|
Dielectric Strength??? |
500VDC for one minute |
|
Shaft Radial Play???? |
0.02mm max(450g load) |
|
Shaft Axial Play?????????? |
0.08mm max(450g load) |
|
Max. radial force????????? |
28N(20mm from the flange) |
|
Max. axial force?????????? |
10N |
|
Rotation????????????????????? |
CCW |
|
Insulation Class?????????? |
B(130℃) |
Performance Data
