Product Details
| Brand Name | 3X MOTION | Place of Origin | China | |
| Model Number | 60HSD SERIES |
Product Description
Certification:ISO9000. ROHS. CE

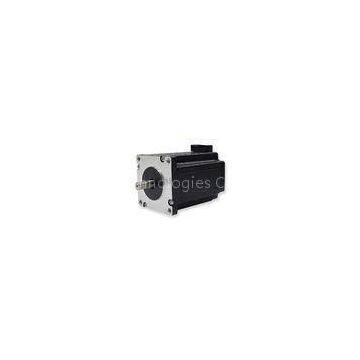

Hybrid Stepper Motors 60HSD Series 1.8 degree step angle 60mm*60mm square size for Medical Equipment
General specification
|
Step Angle Accuracy? |
±5%(full step, no load) |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy? |
±20% |
|
Temperature Rise???? |
80℃max (rated current, 2 phase on) |
|
Ambient Temperature?? |
?-20℃~+50℃ |
|
Insulation Resistance? |
100MΩ min,500VDC |
|
Dielectric Strength??? |
500VDC for one minute |
|
Shaft Radial Play??? ?? |
0.02mm max(450g load) |
|
Shaft Axial Play?????? |
0.08mm max(450g load) |
|
Max. radial force????? |
75N(20mm from the flange) |
|
Max. axial force?????? |
15N |
|
Rotation?????????????? |
CCW |
|
Insulation Class??????? |
B(130℃) |
Performance Data
