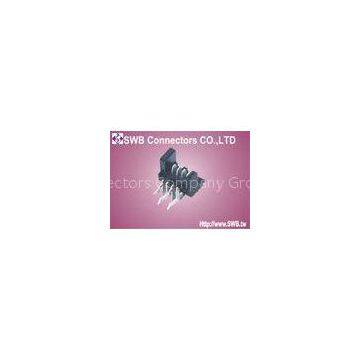

Right Angle Picoflex Header IDC Socket Connector Wire to Board 1.27mm Pitch

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SWB		Place of Origin	China
Model Number	1273 Series

Product Description

Delivery Time:7~10 Work Days
Certification:ISO9001/SGS/UL/RoHS/Reach

Picoflex Header IDC Connector , Wire to Board Connectors 1.27mm Pitch

?Specifications:

Product Name	Picoflex Header Connector
Product Series	IDC Connector
SWB Part Number	1273WR-2*XX
Gender	Female
Pitch	1.27mm
No. of Rows	1
No. of Contacts	4~26
Orientation	Right Angle
Contact Material	Brass
Contact Plating	Tin or Matte Tin
Plastic Material	PA6T UL 94V-0
Plastic Color	Black
Current Rating	1.5A AC/DC
Voltage Rating	125V AC/DC
OperatingTemp. Range	-25℃~+85℃
Contact Resistance	30mΩ Max
Insulation Resistance	1000MΩ Min
Withstanding Voltage	500V AC/minute
Wire Range	N/A

Our main products include Terminal, Housing, Wafer, Pin header(A.FPC/FFC Connectors,B.Wire to Board Connectors,C.Wire to Wire Connectors,D.Board to Board Connectors,E.USB&HDMI Connectors,F.IDC Connectors,G.Board-in Connectors,H.Wire harnesses,Flat Cables&Cables), which are widely used in home appliance,digital product,modern office equipment, communication device,thin-film switch, special electronic product,battery,mobile phone,laptop,computer peripheral equipment,radio system, Set-Top Box, hardware,medical equipment, automotive electronic product,industrial control,security equipment, touch screen,LED screen/ light fixture,fitness equipment, consumer electronic products and electrical engineering,and so on.
