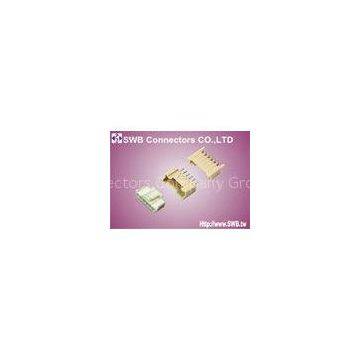

2 pin - 20 pin Wire to Board Connectors 2mm , WTB Connector For Wire Range AWG # 24~30

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SWB		Place of Origin	China
Model Number	3535 Series

Product Description

Delivery Time:7~10 work days
Certification:ISO9001/SGS/UL/RoHS/Reach

2.0mm Pitch Wire to Board Connectors , WTB Conn For Wire Range AWG # 24~30

Specifications:

Product Name	2.0mm Pitch Wire to Board Connector
Product Series	Wire to Board Connectors
SWB Part Number	3535H / 3535T / 3535W
Gender	Male
Pitch	2.00mm
No. of Rows	1
No. of Contacts	2~20
Orientation	Straight , Right Angle
Contact Material	Brass
Contact Plating	Tin Plated
Plastic Material	PA66 UL94V-0
Plastic Color	Nature
Current Rating	2A AC/DC
Voltage Rating	125V AC/DC
Operating Temp. Range	-40℃~+105℃
Contact Resistance	20mΩ Max
Insulation Resistance	1000MΩ Min
Withstanding Voltage	1000V AC/minute
Wire Range	AWG#24~30

Packaging & Shipping

1 Packaging : Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available .

2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc .

3 Delivery Time: normally 7-14days, could be negotiable when order is urgent .

Our Services

1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well .
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control .

4 Long term after sell service to ensure customer is satisfied .

FAQ

Q:How to place a fast connector order ?

A:The following tips will save your time .

The name of the product Pictures and/or the data sheet for the product The number of rows The number of pins per row The pitch of the connector The height of the insulator The color of the insulator The type of material Any Additional Demands

Ask your engineer for details

Are you a purchaser that doesn’t work directly with the product? To place a fast connector order, you can consult the project engineer to gather these information before contacting us.
