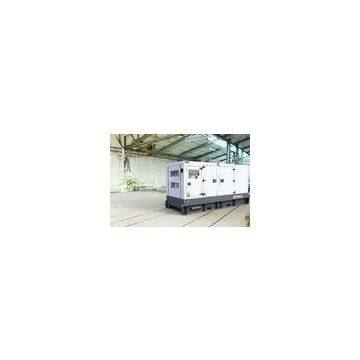

Heavy Fuel Oil Perkins Diesel Generator Set Forced Water Cooling Cycle
- T/T L/C D/P D/A
- 7 days
You May Like
-
Gensets Diesel Perkins Engine Three Phase 1500 Rpm 184kw / 230kva
-
1500 Rpm Genset Perkins Diesel Generator Set Water Cooling Cycle
-
IP54 Silent Perkins Diesel Generator Set 1500rpm 220 KW 275 KVA
-
Gensets Perkins 300 Kva Diesel Generator 600L Fuel Tank Electric Start
-
In - Line Six Cylinder Perkins Diesel Generator Set Anti Vibration 106kw
-
Brushless Canopy Synchronous Industrial Genset Self Exciting
Product Details
| Brand Name | Perkins | Place of Origin | China | |
| Model Number | P200S |
Product Description
Certification:ISO9001/OEM
Heavy Fuel Oil Perkins Diesel Generator Set Forced Water Cooling Cycle
Poweful?Engines:
1. Use world-famous engines :
? ? Assure lowest noise,lowest emission and lowest consumption.
2. Rugged structure;
? ? ?Ensures lowest vibration.
3. Common rail system:
? ? Significantly lowers the combustion temperature and cleaner exhaust.
4. For the turbocharged machines:
? ? Reduced the carbon dioxide (CO2) emission.
Detailed Description:
| 1. Specification of genset | ||||||||||
| Gensets model | P200S | |||||||||
| Prime power (KW/KVA) | 160/200 | |||||||||
| Stand power?(KW/KVA) |
176/220 |
|||||||||
| Fuel Tank Capacity (L) | 600 | |||||||||
| Dimensions L*W*H | 3500*1300*1750 | |||||||||
| Weight(KG) | 2600 | |||||||||
| Rated Voltage | 380/220V | |||||||||
| Rated frequency(HZ) | 50 | |||||||||
| Rated Speed | 1500rpm | |||||||||
| Power Factor(COS￠) | 0.8(lagging) | |||||||||
| 2. Specification of diesel engine | ||||||||||
| Engine brand | Perkins | |||||||||
| Engine model | 1506A-E88TAG1 | |||||||||
| Number of Cylinders | 6 | |||||||||
| Cylinder arrangement | Vertical in-line | |||||||||
| Cycle | Four stroke | |||||||||
| Aspiration | Turbocharged, air-air after-cooled | |||||||||
| Bore×Stroke (mm×mm) | 105mm /135mm | |||||||||
| Displacement (Liters) | 7 | |||||||||
| Compression Ratio | 16:1 | |||||||||
| Speed Governor | Electronic | |||||||||
| Cooling System | Forced Water Cooling Cycle | |||||||||
| Total lubrication system Min.capacity (L) | 16.5 | |||||||||
| Fuel Consumption at 100% Load (L/h) | 43.5 | |||||||||
| Starting Method | DC24V electrical starting | |||||||||
| 3. Specification of alternator | ||||||||||
| Alternator brand | Leroy-Somer | |||||||||
| Alternator model | LSA46.2M5 | |||||||||
| Number of Phase | 3 | |||||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||||
| Number of Bearing | 1 | |||||||||
| Protection Grade | IP23 | |||||||||
| Altitude | ≤1000m | |||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||||
| Insulation Class | H | |||||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||||
| THF | ≤2% | |||||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||||
| Transient State Voltage | ≤-15%～+20% | |||||||||
Engine Main features:
1. Water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
1. Inspection
1. All products must be tested at manufacturer’s workshop according to ISO standard
2. Ensure the delivery date of the contract
3. Qualified Certificate, Parameters and the Performance Index is according to test
2.?Warranty and Maintenance:
1. One year or 2000 running h
