Home > Products > Deutz Diesel Generator Set > Three Phase Deutz Diesel Generator Set 4 Cylinder Electrical Starting

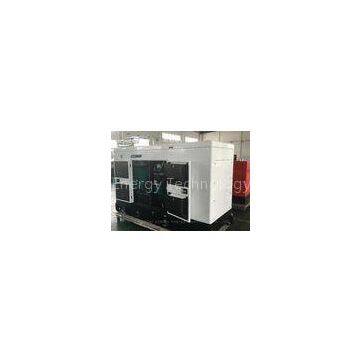

Three Phase Deutz Diesel Generator Set 4 Cylinder Electrical Starting
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Super Silent Deutz Diesel Generator Set , Large Diesel Generator
-
3P 50Hz 300kva Deutz Diesel Generator Set Electrical Start Noise Proof
-
280kw 350kva Deutz Diesel Generator Set 1500 rpm with Low Noise
-
Auto Start Deutz Diesel Generator Set 4 Pole with Soundproof Canopy
-
1500 rpm G3 Deutz Diesel Generator Set Brushless CE Certificate
-
OEM / OKD Deutz Diesel Generator Set Single Phase 50Hz 10.4kw 13kva
Product Details
| Brand Name | Deutz | Place of Origin | China | |
| Model Number | BF4M2011 |
Product Description
Certification:ISO/CE/OEM/3C
Three Phase Deutz Diesel Generator Set 4 Cylinder Electrical Starting
?
?
Standard scope of supply including:
?
1. Smartslink Brand new diesel engine.
2. Brand Stanford AC brushless alternator IP23.
3. Radiator: 50℃.Ambient temperature mounted on skid.
4. Three phase,380V/400V/230V/415V, 50HZ@1500RPM, 0.8PF.
4. Standard Accessories(such as operation manual,certificate of conformity and so on).
?
?
Detailed Description:
?
| 1. Specification of genset | ||||||||||
| Gensets model | BF4M2011 | |||||||||
| Prime power (KW/KVA) | 32/40 | |||||||||
| Stand power (KW/KVA) | 35.2/44 | |||||||||
| Fuel Tank Capacity (L) | 120 | |||||||||
| Dimensions L*W*H | 2100*900*1000 | |||||||||
| Weight(KG) | 880 | |||||||||
| Rated Voltage | 380/220V | |||||||||
| Rated frequency(HZ) | 50 | |||||||||
| Rated Speed | 1500rpm | |||||||||
| Power Factor(COS￠) | 0.8(lagging) | |||||||||
| 2. Specification of diesel engine | ||||||||||
| Engine brand | Deutz | |||||||||
| Engine model | BF4M2011 | |||||||||
| Number of Cylinders | 4 | |||||||||
| Cylinder arrangement | Vertical in-line | |||||||||
| Cycle | Four stroke | |||||||||
| Aspiration | Turbocharged, air-air after-cooled | |||||||||
| Bore×Stroke (mm×mm) | 108mm/130mm | |||||||||
| Displacement (Liters) | 7.15 | |||||||||
| Compression Ratio | 18:1 | |||||||||
| Speed Governor | Electronic | |||||||||
| Cooling System | Forced Water Cooling Cycle | |||||||||
| Total lubrication system Min.capacity (L) | 2.7 | |||||||||
| Fuel Consumption at 100% Load (L/h) | 208 | |||||||||
| Starting Method | DC24V electrical starting | |||||||||
| 3. Specification of alternator | ||||||||||
| Alternator brand | Leroy-Somer | |||||||||
| Alternator model | SMF180G | |||||||||
| Number of Phase | 3 | |||||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||||
| Number of Bearing | 1 | |||||||||
| Protection Grade | IP23 | |||||||||
| Altitude | ≤1000m | |||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||||
| Insulation Class | H | |||||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||||
| THF | ≤2% | |||||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||||
| Transient State Voltage | ≤-15%～+20% | |||||||||
?
?
?
Engine Main features:
1. Water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
?
1. Inspection
1. All products must be tested at manufacturer’s workshop according to ISO standard
2. Ensure the delivery date of the contract
3. Qualified Certificate, Parameters and the Performance Index is according to test
?
2.?Warranty and Maintenance:
1. One year or 2000 running hours whichever comes first.
2. Provide warranty and installation instruction manual
3. Spare-parts can also be sent by air express.
4. 24 hours service hotline is available for customers.
?
