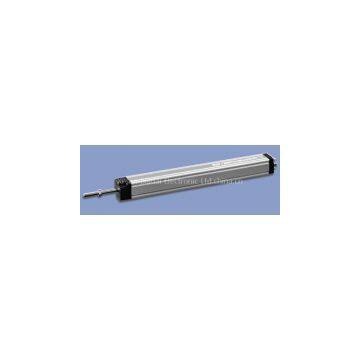

Novotechnik Position Transducer LWH-0150

Position Transducers

potentiometric

up to 900 mm, IP55

Series LWH

Special features

* long life up to 100 Mio.

movements, depending on

application

* outstanding linearity up to

±0.04 %

* high resolution 0.01 mm

* very high operating speed

* connection via plug and

socket to DIN 43 650 (hydraulic

connector)

* protection class IP 55

Position transducers with resistive

and collector track

made from conductice plastic

for direct, accurate measurement

of travel in display- or

feedback applications.

High resolution (0.01 mm)

combined with a stroke length

of up to 900 mm permits the

accurate measurement of linear

displacement.

Rack and pinions or similar

devices are not required

because the design of the

transducers is such that they

may be built directly into the

mechanical system.

Tighter tolerances on the extruded

body combined with a

special surface treatment permit

high operating speeds and

reduced wear. A pivoting front

bearing over comes *stickslip“

type of operation even

where some angular or out of

parallel errors are present.

The technique for fixing and

making connections to the

resistance track ensures the

highest degree of reliability

even under harsh working

conditions.

By mounting overhead on

difficult-to-reach machines it

is possible to premount the

clamps to the mounting surface

and then simply

“snap-on” the transducer.

The transducer has mounting

grooves on all four housing

surfaces. Thus the transducer

can always be mounted with

the resistance element directed

upwards (recognizable by the

position of the middle mounting

groove directly across

from the resistance element),

independent of the mounting

surface.

Erosion particles from inside

the transducer will therefore

not remain on the resistance

element, improving the lifespan

of the sensor.

Order designations

Type P/N

LWH-0050* 024302

LWH-0075 024303

LWH-0100 024304

LWH-0110* 024360

LWH-0130 024305

LWH-0150 024306

LWH-0175 027307

LWH-0200 024308

LWH-0225 024309

LWH-0250 024310

LWH-0275 024311

LWH-0300 024312

LWH-0325 024313

LWH-0360 024314

LWH-0375 024315

LWH-0400 024316

LWH-0425* 024317

LWH-0450 024318

LWH-0500 024320

LWH-0550 024322

LWH-0600 024324

LWH-0650* 024326

LWH-0750 024330

LWH-0800* 024332

LWH-0900 024336
