Novotechnik Potentiometric Sensors Series LWG

Position Transducers

Pivot head mounting

potentiometric

up to 750 mm, IP65

Series LWG

Special features

* double beared actuating rod

* mountable via free from

backlash pivot heads with a

large angle of free movement

(up ±12.5 %)

* outstanding linearity

* resolution better than

0.01 mm

* long life up to 50 Mio.

movements, depending on

application

* protection class IP65

* cable or connector version

available

* Heavy duty version IP67

see data sheet LWX

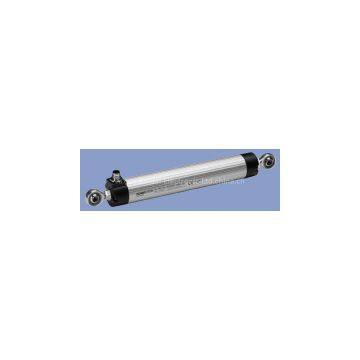

A robust housing with a simple

mounting via pivot heads

characterize these transducer

series.

The wiper tapping is decoupled

free from backlash to the

actuating rod, hereby a high

accuracy and life span is secured.

This transducer can be used

in a wide range of applications

such as mechanical and vehicle

engineering as well as in

automation and robotics technologies.

By the simplicity of the measuring

system - passive and

absolute - is the transducer as

far as possible insensitive to

electrical interferences and

magnetical disturbances.

Important

All values specified in this

data sheet for linearity, lifetime

and temperature coefficient

are only valid for a sensor

used as a voltage divider with

virtually no load applied to the

wiper (le < 1 μA).

Order designations (cable version)

Type      P/N

LWG-0050   026202

LWG-0075   026203

LWG-0100   026204

LWG-0150   026206

LWG-0175   026207

LWG-0225   026209

LWG-0250   026210

LWG-0300   026212

LWG-0360   026214

LWG-0450   026218

LWG-0500   026220

LWG-0550   026222

LWG-0600   026224

Other lengths on request
