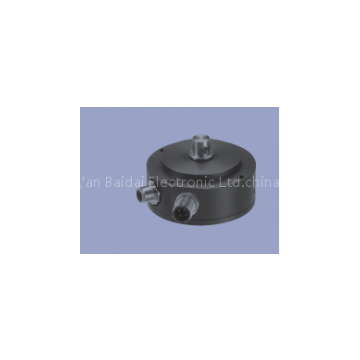

Novotechnik Rotary Sensor RSX–7911–836–324-352

NOVOtechnik

Rotary Sensor

non-contacting

Series RSX-7900

RSX–7911–836–324-352

Special features

* very robust design to extreme

environmental conditions

* high shaft load 300 N

* non-contacting, magnetic

* measuring angles up to 360°

in single and multi-channel

versions

* enhanced corrosion protection

by anodized aluminum housing

and stainless steel shaft, salt

spray resistant

* very good linearity

* resolution 12 bit

* unlimited mechanically rotable

* absolutely impermeable to

splash-water P6k9k

* high temperature resistance

* long life >100 million movements,

even at vibrationloaded

mounting positions

* designed for use in safetyrelated

applications according

to PLd, ISO 13849

* E1-approval

The angle sensor RSX-7900

is designed for use in mobile

applications under extreme

environmental conditions. The

sensor is suitable for a continuously

ambitous operating.

The robust full metal housing

with a double ball bearing

stainless steel shaft and a

superior seal concept protects

the sensor against mechanical

and other environmental

influences.

The high accuracy and reliability

of the magnetic angle

measurement are further features,

particularly in safetyrelated

applications.

The massive but compact design

allows direct mounting of

the sensor without additional

protective measures.

Various shaft versions allow

guidance via lever arm or

other driving elements.

The centering of the housing

can be done either by direct

fitting by a 58 mm diameter

frontside or as reverse fitting

by a 16 mm diameter in the

cover.
