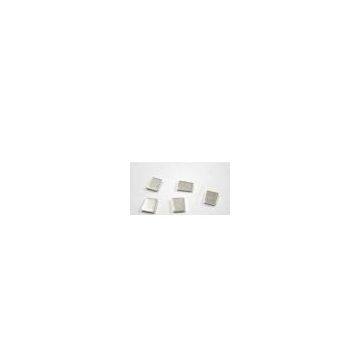

Silver Carbon
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Main Purpose：
The largest applied fields for the are contact are the low-voltage circuit break-ers,line protective switches,fault circuit protective switches,gliding electrical brushes and railway sign relays etc.on some practical occasions,3% of the carbon content is enough,but if we met with tough break condition,5% of the content may be suitable.
Contact Properties：
The main feature of AgC materials are its well electrical conductibility,low con-tact resistance and extremely high anti-welding,especially when used in show circu-it and also fine lubricative function,on the other hand,it has heavy electrical-erosion and poor extinction properties of arc ability,and if performed.by the arc for a long time,it will burn fiercely.Consequently,it makes the arc-extinction case pile of carbon,and be fragile and difficult to weld.
The largest applied fields for the are contact are the low-voltage circuit break-ers,line protective switches,fault circuit protective switches,gliding electrical brushes and railway sign relays etc.on some practical occasions,3% of the carbon content is enough,but if we met with tough break condition,5% of the content may be suitable.
Contact Properties：
The main feature of AgC materials are its well electrical conductibility,low con-tact resistance and extremely high anti-welding,especially when used in show circu-it and also fine lubricative function,on the other hand,it has heavy electrical-erosion and poor extinction properties of arc ability,and if performed.by the arc for a long time,it will burn fiercely.Consequently,it makes the arc-extinction case pile of carbon,and be fragile and difficult to weld.
|
Materials |
Compose % |
Density g/cm3≥ |
Resistance Rate μΩ.cm≤ |
Hardness (HV) MPa≥ | |
|
Ag |
C | ||||
|
AgC3 |
97 |
3 |
9.1 |
2.20 |
343 |
|
AgC4 |
96 |
4 |
8.8 |
2.17 |
402 |
|
AgC5 |
95 |
5 |
8.6 |
2.32 |
392 |
Type of products：
Wire Material,Plate Material,Punched Material,Rivet,Bi-metel
