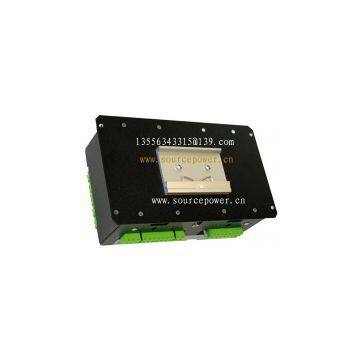

ComAp IS-NT-MARINE InteliSys NT BaseBox Marine GeCon InteliSys-NT-BaseBox-Marine-GeCon

• InteliSysNTC BaseBox GeCon
  Premium and Cogeneration (CHP) Generator Controller

• Premium generator controller for both single and multiple gensets operating in standby or parallel modes
  Support of cogeneration (CHP) and other complex applications
  To be used in conjunction with detachable colour displays InteliVision 8 or InteliVision 5
  Complete integrated generator solution and signal sharing via CAN bus – minimum external components needed
  Many communication options – easy remote supervising and servicing
  Generator performance log for easy problem tracing
  Automatic synchronizing and control breaker
  Baseload, Import / Export, TempByPower, Peak shaving, Voltage and PF control (AVR)
  Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
  Mains measurement: U, I, Hz, kW, kVAr, PF
  Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
  Inputs and outputs configurable for various customer needs
  Bipolar binary output – possibility to use BO as High or Low side switch
  1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages;  secondary RS485 converter is isolated
  AirGate support
  Ethernet connection (RJ45)
  USB 2.0 slave interface
  Event-based history (up to 4000 records) with customer-selectable list of stored values; RTC; statistic values
  Post mortem history (50 records)
  Integrated PLC programmable functions
  Integrated fixed and configurable protections
  Customized firmware solution
