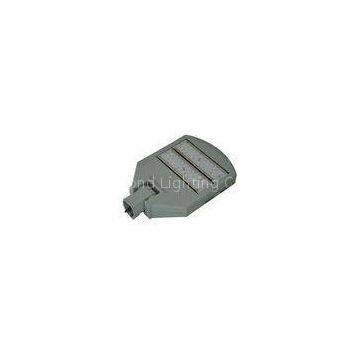

Energy Saving 60W High Power LED Street Lighting With Bridgelux Chip

60W High Power LED Street light with Bridgelux chip and Meanwell driver.?
?
1. Dimension

?
2.Application
?Suitable for the street lighting at highways, urban roads and secondary roads,
stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools,
villas, gardens and other places.
3.Features
?1) high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power ? ? ?factor greater than 0.98, UL compulsory certification.
? 2) Adopting Lepower led light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
? 3) Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.?
? 4) Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.??
? 5) Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
? 6) Green environmental protection, no UV light and infrared radiation, no mercury pollution.
? 7) Nice appearance and non-fouling properties, Protection class IP66.
? 8)?Work without strobe, fast transient response；A wide range of working voltage.
? 9) 2pcs 1W chips are packaged in one led, which ensure high stability and also reduce the death rate of the leds.
4.Specification
Electrical Specifications
?

?
Optical Specifications
?
