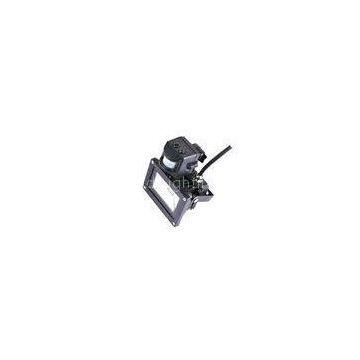

High power PIR LED Flood Light 10W , PIR LED FloodLight AC100V - 240 V

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Leyond		Place of Origin	China
Model Number	LY-FL1010PW-P

Delivery Time:7-15 working days
Certification:CE,ROHS,ISO9001:2008

High power 10W?PIR LED Flood Light with high luminous efficiency.

Features:

1. Adopting high power integrated LED, which ensures light is more uniform,light efficiency is higher.

2. Using high transmittance tempered glass,transimittance93%

3. Complying with ROHS,absolutely not contain mercury or other harmful substance

4. Lifespan of whole tube over 35000 hours

5. LED lamp turn on automatically when the body through the sensor area.

6. Can identify day and night automatically, the ambient-light can be selected to work at night automatically and stop in the ? daytime.

7. Time-delay can be adjusted vary to the place.

Technical Data:

?Material	?Die-cast??Aluminum
?Input Voltage	?AC100-240V 50/60Hz
?Power Efficiency	?≥85%
?Power factor	?≥0.95
?Beam Angle	?100o 50o
?LED Luminous? efficiency	?≥90lm/W
?Color Temperature	?Warm white???WW 2800-3500K ?Neutral white??NW 4000-5000K ?Pure white????PW 5500-7000K
?Detection range	?120o
?Detection distance	?12m
?Time-delay	?Min:5sec Max:6min±2min
?Ambient-light	?<3Lux-2000Lux
?Installation	?height:2m-4.5m

Product Descriptions:

Model	Product Dimension(mm)	Power (W)	LED Luminous flux	Average Iilluminance	Facula Area	Net Weight
LY-FL1010PW-P	L115xW85xH106	12	760-860lm	1m=289lux 2M=72lux 3M=32lux	1M=3.5x3.5M 2M=6.5x6.5M 3M=9.5x9.5M	0.65KG
LY-FL1020PW-P	L225xW230xH125	25	1700-1900lm	2m=110lux 3M=50lux 4M=30lux	2M=3.5x3.5M 3M=6.5x6.5M 4M=9.5x9.5M	2.13KG
LY-FL1030PW-P	L225xW230xH125	35	2550-2850lm	2m=155lux 3M=75lux 4M=45lux	2M=3.5x3.5M 3M=6.5x6.5M 4M=9.5x9.5M	2.14KG
LY-FL1050PW-P	L285xW270xH135	55	4250-4750lm	4m=80lux 6M=35lux 8M=18lux	4M=9x9M 6M=14x14M 8M=19x19M	2.98KG

Applications:

?Suitable for workshop, factory, garden, road and other automatic control occasion.
