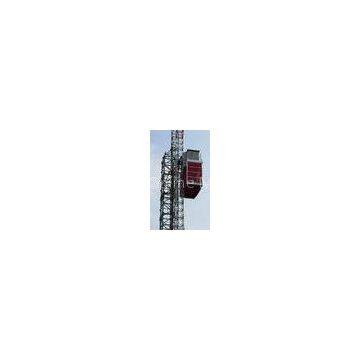

Twin Cage Industrial Lift
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity
-
Lifting Speed 0 ~ 60m / min Industrial Lift 2700kg Rack and Pinion Hoist
-
Double Car Industrial Lift and Hoist for Building Site CH3200 3200kg Capacity 33 m/min
-
3200kg Blue Twin Cage Industrial Lift with Hot Dipped Zinc , High Reliability
-
Construction material hoisting equipment Industrial Lifter for Goods and Cargo
-
Single Cage Rack / Pinion Industrial Lift , Building Lifter With 250m Lifting Height
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | CH-series |
Product Description
Certification:CE,ISO
?
3200kg Blue?Industrial?Twin Cage Lift with Hot Dipped Zinc CH320
?
?
Quick Detail:
?
|
Name |
Other Name |
Brand Name |
Control |
|
Industrial hoists |
Industrial hoists CH 3200 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
3200kg |
Certificate |
CE |
?
?
DeCription:
?
Industrial hoists CH 3200 is installed and dismounted conveniently and can grow as high as the building grows height.The Industrial hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment
?
?
Applications:?
?
CH serialization of products Industrial hoists is a Rack and Pinion EL. Industrial hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
?
?
Specifications
Standard?technical datas of?single car?:
|
Parameter |
CH1000 |
CH1600 |
CH2000 |
CH2700 |
CH3200 |
|
Rated |
1000 |
1600 |
2000 |
2700 |
3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12 |
18 |
24 |
30 |
38 |
|
Max. lifting height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine power(kW) |
2*9.5 |
2*11 |
2*13 |
3*18.5 |
3*22 |
|
Car?inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Car?weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
?SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1. |
