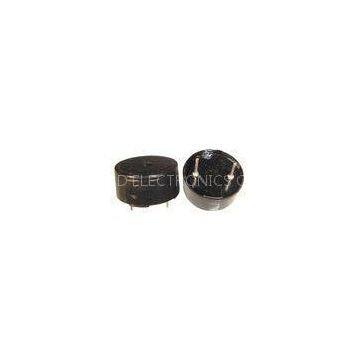

Small 5Volt Piezo Electric Buzzer With Pin , 136.2mm Piezo Transducer
- T/T L/C D/P D/A
- 7 days
You May Like
-
Small Black 80dB Piezo Electric Transducer With 5Voltage External Drive
-
Black 5V Passive Piezo Electric Transducer D13.8mmxH5.5mm For Alarm
-
Wire 12VDC Piezo Alarm Buzzer , Electronic Buzzer 115db For Automobile
-
Audio 3V Electro Magnetic Buzzer , 2400Hz Frequency Passive Buzzers
-
3V Black External Electro Magnetic Buzzer , 12mm Electro-Magnetic Transducer
-
3.6 V Electromagnetic SMD Transducer Magnet Buzzers For Mobile Phone
Product Details
| Brand Name | FHD | Place of Origin | China | |
| Model Number | BP1360B-4001 |
Product Description
Certification:ISO9001 TS16949
Small 5Volt Piezo Electric Buzzer With Pin , 13×6.2mm Piezo Transducer
Quick Detail:
Size: D13mm*H6.2mm SPL: Min.80dB at 4KHz/3Vp-p 1/2 Duty Square Wave/10cm Operating Voltage: 1-25Vp-pSpecification:
1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.
|
1 |
Resonant Frequency |
4000±400Hz |
|
2 |
Operating Voltage |
1～25Vp-p |
|
3 |
Rated Current |
Max.3mA , At 4KHz 50% duty Square Wave 3Vp-p |
|
4 |
Sound Output at 10cm |
Min. 70dB, At 4KHz 50% duty Square Wave 3Vp-p |
|
5 |
Capacitance |
12000±30% pF At 120Hz |
|
6 |
Operating Temperature |
-20℃～+70℃ |
|
7 |
Store Temperature |
-30℃～+80℃ |
|
8 |
Net Weight |
Approx 0.5g |
|
9 |
RoHS |
Yes |
*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PPO3.Electrical And Acoustical Measuring Condition
Recommended Setting
4.Frequency Response
?5Vp-p 50% duty Square wave,10cm
Application:
CHANGZHOU FHD ELECTRONICS CO., LTD is a professional manufacturer in the field of micro acoustic products , our products is widely used in household electrical appliances; mobile phones; computers; medical equipment; alarm system; pos machine ；access control system; toy; automobile; instrument and meter; electrical equipment; we can produce all kinds of piezoelectric buzzers and magnetic buzzers as long as you have the following details; welcome to consultation discussion.
