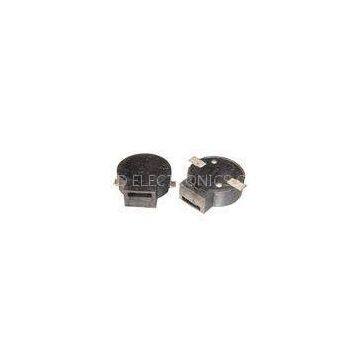

Mini SMD Transducer Magnetic 3.0 Vo-p Max.90MA , Small Buzzer for Toy
- T/T L/C D/P D/A
- 7 days
You May Like
-
Black LCP SMT Transducer SMD Magnet Buzzer 2 Soldering Pads For Computer
-
5V Noryl Piezo Electric Transducer Piezoelectric Buzzer D16.5MMxH9.0MM
-
Micro 5V ABS Piezo Transducer , Piezoelectric Transducers For Computer
-
Black PPO Piezo Electric Transducer 5 Volt Piezoelectric Element For Toy
-
Piezo Wire Alarm Siren Active Buzzer 12 V , 90dB Electric Transducer
-
24V ABS Piezo Active Buzzer Alarm With Wire , 95 dB Piezo Transducer
Product Details
| Brand Name | FHD | Place of Origin | China | |
| Model Number | BM9025S-0327-16 |
Product Description
Certification:ISO9001 TS16949
Mini SMD Transducer Magnetic 3.0 Vo-p Max.90MA , Small Buzzer for Toy
Quick Detail:
Size: D9.0mm*H2.5mm SPL: Min.85dB at 10cm Input 2731Hz/3Vo-p 1/2 Duty Square Wave Coil Resistance: 163 ohm Operating Voltage: 2-4Vo-p Rated Current: Max.90mA Input 2731Hz/3Vo-p 1/2 Duty Square WaveDescription:
buzzer SMD Electro-Magnetic Buzzer SMD Electro-Magnetic Element 3V Buzzer thin and small Buzzer1.?Technical?Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.
|
1 |
Rated Voltage |
3.0 Vo-p |
|
2 |
Operating Voltage |
2～4 Vo-p |
|
3 |
Rated Current |
Max.90mA ,at 2731Hz 50% duty Square Wave 3Vo-p |
|
4 |
Sound Output at 10cm |
Min. 85dB,at 2731Hz 50% duty Square Wave 3Vo-p |
|
5 |
Coil Resistance |
16±3Ω |
|
6 |
Resonant Frequency |
2731Hz |
|
7 |
Operating Temperature |
-20℃～+70℃ |
|
8 |
Store Temperature |
-30℃～+80℃ |
|
9 |
Net Weight |
Approx 0.5g |
|
10 |
RoHS |
Yes |
*Unit: mm; Tolerance: ±0.3mm Except Specified
*Housing Material: Black LCP
*Terminal plate: 2 soldering pads, tin Plating Brass
3.Electrical?And?Acoustical?Measuring?Condition
Recommended Driving Circuit
Resonant frequency, 1/2 duty cycle. Square wave.
Signal amplitude should be large enough tosaturate
the transistor.
Recommended Setting
Frequency Response
3Vo-p 50% duty Square wave,10cm
Application:
CHANGZHOU FHD ELECTRONICS CO., LTD is a professional manufacturer in the field of ceramic components ,our products is widely used in household electrical appliances; mobile phones; computers; medical equipment; alarm system; pos machine ；access control system; toy; automobile; instrument and meter; electrical equipment; we can produce all kinds of piezo buzzers as long as you have the following details; welcome to consultation discussion.
