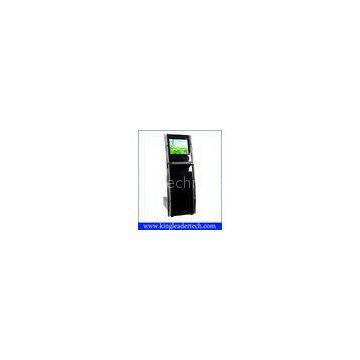

Space Saving Standard Touch Screen Information Kiosk Outdoor TSK8024

?Technical Specifications

TFT LCD Display

- Resolution: 1024x768(15″)

1280x1024(17″and 19″)

- Brightness: 250~300 nits

- Contrast ratio: 450:1

- Response time :8 ms

Touch Screen

- Vandal-proof SAW touch screen

- Material: Heat tempered glass with thickness 6mm

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: ≥ 92%

- Surface Hardness:? 7 Mohs scale

- Lifetime:50, 000, 000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g

Enclosure

- Durable steel enclosure (different colors for option)

-Built-in power control panel, and hi-fi speakers.

-Two cooling fans for computer board and main body separately

-RJ45/RJ11 interface

-Large access doors with tubular locks/keys

Mother Board

- CPU: Intel Pentium dual core E5300?

(upgradeable on request)

- RAM:?1GB (upgradeable on request)

- Hard Disc: 250GB (upgradeable on request)

Operation System

LINUX/Win3.X/98/2000/NT4.0/XP

Working Voltage

AC 220V, 50 Hz or 110V, 60 Hz for option

Ambient Environment

- WorkingTemperature

-20℃~65℃;RelativeHumidity: 30%~90%

- Storage Temperature:

-40℃~80℃;Relative Humidity: 5%~95%

Dimensions

- 145(height) x 47(width) x 32(depth) CMs

- Packing dimension: 150 x 60 x 46cm

Optional Peripherals

Stainless steel keyboard, trackball, card

reader/ writer, barcode scanner, video camera etc.
