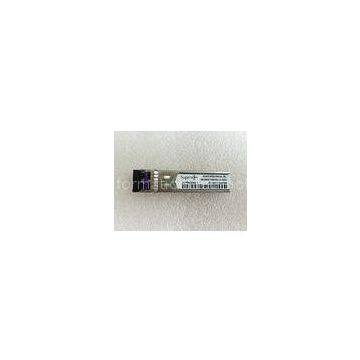

SMF I-temp SFP Optical Module 20km HCWDM 6WL , Fiber Optics Transceiver
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
EML Transmitter XGPON Transceiver TUV/FCC / UL / ROHS / FDA / CDRH
-
120km CWDM Optical Transceiver LC - Connector 0.155Gb/s SFP Fiber Module
-
10G EPON Optical Fiber Transceiver Complies With FCC 47 CFR Part 15 Class B
-
Bi - directional Symmetrical OLT 10G EPON Transceiver / XFP Optical Module
-
10GEPON PRX30 OLT XFP Optical Transceiver Complies With IEEE 802.3ah
-
Symmetrical ONU 10G EPON Transceiver 10Gb/s , SFP+ Optical Transceiver
Product Details
| Brand Name | Superxon | Place of Origin | China | |
| Model Number | SO02CWDD-PLIGA-xxx |
Product Description
Certification:TUV/ FCC/ UL/ROHS/FDA
specification:
|
P/N |
SO02CWDD-PLIGA-xxx |
|
Data rate: |
3.125Gbs |
|
Distance |
20km |
|
Wavelength |
HCWDM 6WL |
|
Transmitter |
DFB |
|
Receiver |
PIN |
|
DDM |
Yes |
|
Connector |
LC |
|
Operating Temperature |
-40~85℃ |
|
Voltage Supply |
3.3V |
|
Brand |
Superxon |
|
Certification |
TUV/FCC/UL/ROHS/ FDA/CDRH |
Supports 3.072Gb/s bit rates
Case temperature range from -40°C to 85°C
SFP package with single LC/UPC receptacle connector
Hot-pluggable capability
High-Density SFP (H-SFP) Transceivers
Single +3.3 V power supply
Customized CWDM Tx(Cooled DFB-LD) / Rx(PIN-PD)
Two different uplink and downlink wavelengths within a single CWDM channel
Up to 25km transmission distance over SMF
SFI electrical interface
Low Power dissipation
Low EMI and excellent ESD protection
Built- in Digital Diagnostic Monitoring (DDM) function
Class I laser safety standard IEC-60825 compliant
RoHS-6 compliance
APPLICATIONS
CPRI/OBSAI LINE : 1.2288, 2.4576, 3.072Gb/s
Digital repeater and Base station
SONET/SDH application
STANDARDS
Complies with SFP MSA
Complies with SFF-8472
Complies with FCC 47 CFR Part 15, Class B
Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Competitive Advantage:
1. Excellent quality with 2 years warranty
2 Competitive pricing
3.OEM/ODM?Customized label
4 Keep stock , Fast delivery
