High Durability Networks Fiber Optic Patch Cord with LSZH jacket Ceramic Ferrule

High Durability Networks Fiber Optic Patch Cord with LSZH jacket Ceramic Ferrule?

Fiber Optic Patch Cord is one piece of cable with connectors in both sides. If only one side assemble the connector, it is called fiber optic pigtail.

Cores: simplex, duplex, multi core patch cords.

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

Endface type: UPC, APC

Descriptions

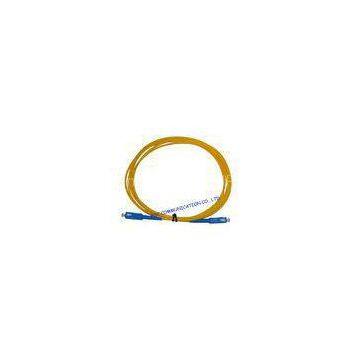

The SC-SC SM?duplex fiber optic patch cord, these cables are with 9/125 single mode fiber, and connector types are PC, UPC or APC optional. The SC-SC?duplex?single mode optical fiber patch cord ?are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.

SC has single mode and multimode versions, simplex or duplex, PC, UPC or APC. Our SC optical fiber cord are compliant to IEC and EIA/TIA standards, they are compatible to use with equipment from other companies. We supply the SC fiber optic patch cable, fiber optic connectors, jumper cables, adapters, LC attenuators and related LC fiber optic components.

SC optical fiber cords are widely used in fiber optic systems; especially SC single mode products are very popular. SC standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. SC fiber optic connectors comply with IEC 61754-13 & CECC 86 115-801 standards. They are well known for general, average applications. We supply single mode and multimode version SC fiber jumper cables and SC fiber optic components.

Features

Low insertion loss

High return loss

Excellent repeatability

Compact and anti-pull design
Precision fiber optic ferrule???????????
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors

Applications

Local area networks, wide area networks

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection

Premise Installations
Telecommunication Networks

Fiber to the home

SPECIFICATIONS

Technical Test Data

Rema?? Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.

Order?? Ordering information
