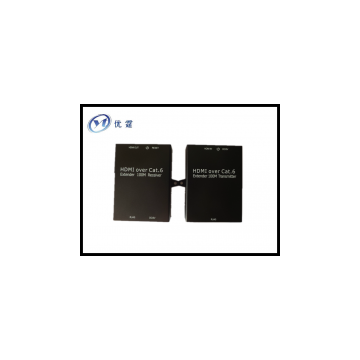

HDMI Extender 100m with single cat-5e/6/7 cables HDMI 1.3 HDCP1.2

HDMI-CAT-HDMI Extender
Model No: YT-TXRX100M

INTRODUCTION

The YT-TXRX100M Extender use one cat-6 cables up to 100 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition signal is very difficult because HDMI cable is very expensive. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
Support HDMI 1.3 protocol
HDCP 1.2 protocol compliant
Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Signal transmission: Single cat-6 cable up to100 meters is connected between TX and RX of the Extender. The HDMI cable length between the source and the TX or the Sink and the RX will be up to 1-5m. The cat cable length and the HDMI cable length add most up to 100m.
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
LED indication: when power is supplied or device is working, LED related with will go bright.
Support up to10metres AWG26 cable length between extender and source & sink device
No loss of quality
Installs in minutes
Need DC5V/2A power supply

The accessories with the device lists:
1, 5V Power Adaptor
2, one pc of ManualPower Adaptor
Physical Connection Showing Picture:
Figure 1.0 Front Panel Showing Pictur
HDMI IN: Signal Source Input.
HDMI OUT:Receiver to connect the HDTV or other display.
Figure 1.1 the rear and side board showing picture
To use single cat6 to connect the sender and receiver (with RJ 45 port)
DC 5V: 5V DC-DC Power Adaptor Interface.
Operating and Connecting:
Connect one HDMI 1.3 cable up to 10meters between source device and TX Extender
Connect one HDMI 1.3 cable up to 10meters between sink device and RX Extender
Connect one cat-6 cables up to 100 meters  between TX and RX Extender
Connect 5V power supply to the YT-TXRX100M-CAT6Extender

SPECIFICATIONS:                        YT-TXRX100M-CAT6

Length of CAT-6 cable between Rx and TX…..….. ..……. ..… .….…   Up to 100 meters
HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...……. DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………165MHz
Max baud rate……………….…….……………4.95Gbps
Input Videosignal ………….……………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………… 5Volts p-p (TT1L)
Input/Output HDMI1.3 cable distance…….…...≤15m AWG26 HDMI 1.3 standard cable
Max working current……………………………………...800mA
Power adapter format………...………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range……..……………………… (-15 to +55℃)
Operating Humidity range……….5 to 90%RH (No Condensation)
Dimension (L x W x H)     ……………99*73*27(mm) (RX/TX)
Weight…..……………………..…………………0.43kg/pcs *2
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
All parts will be free from the strong shake, hit, fall.
Touching the power adaptor with the wet hands is prohibited.
Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
Pls turn the power off when the device is not used for long time.
Pls do not open the cover and do not touch the inside parts.
Pls use the original factory power adapter.
