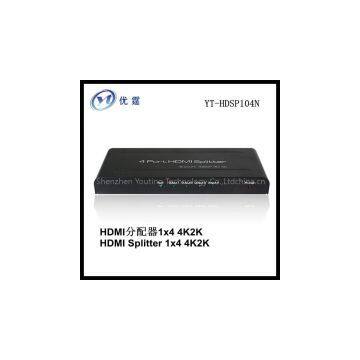

HDMI splitter amplifier 1x4 4 outputs 3D 4K*2K supported

The Full 3D 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Our series of HDMI Converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

FEATURES
One HDMI input signal split to four HDMI sink devices
Support  Full HD, Full 3D
Support 4Kx2K resolution
Support CEC
Support 4X2
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
/DSD/HD(HBR)
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/3A power supply

The accessories with the machines lists:

1, 5V Power Adaptor
2, one pc of Manual

SPECIFICATIONS:
HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit
Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………………………………….………………………….340MHz
Max  rate…………………….………………….………………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………...………….≤15m HDMI AWG26
Output cable distance…………………………….……….…...≤25m AWG26 HDMI standard cable
Max working current………………………………..……………………………………….....1500mA
Power adapter format..Input: ……………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range……..…………….……………………………….…… (-15 to +55℃)
Operating Humidity range………………………….….…………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………………………..180X68X20(mm)
Weight…..………………………………………………………..…….…………………..………320g

Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
All parts will be free from the strong shake, hit, fall.
Touching the power adaptor with the wet hands is prohibited.
Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
Pls turn the power off when the machine is not used for long time.
Pls do not open the cover and do not touch the inside parts.
Pls use the original factory power adaptor.

Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
