Home > Products > Welding Rotator > 40000 Kg Weld Rotator / Welding Turning Roll , VFD Rotary Speed Control

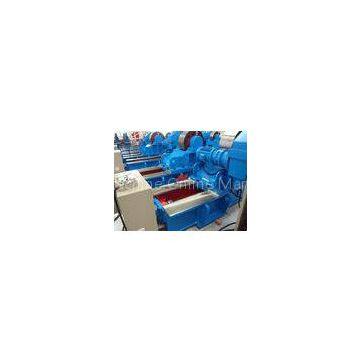

40000 Kg Weld Rotator / Welding Turning Roll , VFD Rotary Speed Control
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Self-Align Automatic Pipe Welding Rotator Machine For Tank Circular Cylinder
-
Siemens Adjustable Self Aligning Rotators 20Ton For Tank / Vessel Welding
-
Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller
-
Lead Screw Adjustable Pipe Welding Rotator
-
Lead Screw Adjustable Welding Rotator 5T For Tank / Vessel Welding
-
Power Station 10T Self Aligning Rotators Industrial For Welding Machinery
Product Details
| Brand Name | H-WELDING | Place of Origin | China | |
| Model Number | CHGK-40 |
Product Description
Certification:Certification of original
40000 Kg Welding Turning Roll / Welding Rotator , VFD Rotary Speed Control
Quick Detail:
The lead screw adjusting rotator is suitable for circular pipe/tank/vessel welding; The distance between wheels can be adjustable by lead screw. There are several specifications for customer choice; we also can special design according to customer’s requirements.Description:
The distance between two rollers can be adjustable by manual control of lead screw, to accommodate work-piece of variable diameters. The equipment features in good adaptation, smooth revolve, VFD adjustable revolve speed and displaying in linear speed, which is suitable for welding, polishing, assembly for pipe/tank/vessel longitudinal and transverse seam welding.??
Our company also can customize welding rotator in all varieties according to client\'s requirements.
Applications:
It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.
Specifications:
|
Type |
Max loading (kg) |
Range of suitable work piece(mm) |
Dia. and width of the wheel(mm) |
roller linear velocity(m/h) |
Power of motor(kw) |
Adjustable mode for space |
Way of setting |
|
|
Rubber rollers |
Metal rollers |
|||||||
|
HGK-2 |
2000 |
Φ200-1200 |
Φ200×100 |
2×Φ190×16 |
6-60 |
2×0.18 |
Manual screw adjustment or bolt shift |
AC converter stepless speed adjust |
|
HGK-5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
6-60 |
2×0.37 |
||
|
HGK-10 |
10000 |
Φ300-2800 |
Φ300×120 |
2×Φ290×25 |
6-60 |
2×0.55 |
||
|
HGK-20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×35 |
6-60 |
2×1.1 |
||
|
HGK-40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×45 |
6-60 |
2×1.5 |
||
|
HGK-60 |
60000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×60 |
6-60 |
2×2.2 |
Bolt shift |
|
|
HGK-80 |
80000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×70 |
6-60 |
2×3 |
||
|
HGK-100 |
100000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×100 |
6-60 |
2×4 |
||
|
HGK-150 |
150000 |
Φ1100-6000 |
/ |
Φ620×220 |
6-60 |
2×4 |
||
|
HGK-250 |
250000 |
Φ1100-7500 |
/ |
Φ660×260 |
6-60 |
2×5.5 |
||
|
HGK-400 |
400000 |
Φ1100-7500 |
