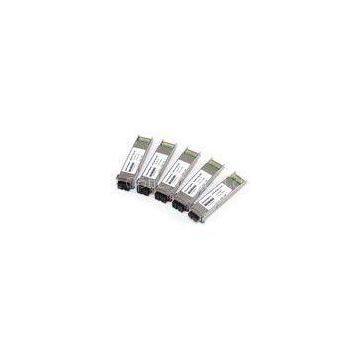

1310nm 220m 10G XFP Module LRM For 10 Gigabit Ethernet 10gbase-lrm
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
1310nm 10Km 10G XFP Module For SMF / Datacom 10G Ethernet xfp-10g-lr
-
850nm 300m 10G XFP Module MMF For 10x FC Telcom xfp-10g-sr
-
10G SFP+ Direct Attach Cable / Copper Twinax Cable 11 Meter , Passive
-
40GBASE-CR4 QSFP + to four 10GBASE-CU SFP+ direct attach breakout cable
-
8M , Passive 10G SFP+ Copper Twinax Cable For 2X 4X 8X Fiber Channel
-
3com Optical Transceiver Module
Product Details
| Brand Name | AscentOptics/Neuter, OEM | Place of Origin | China | |
| Model Number | AOX-3192-LRM |
Product Description
Certification:CE/FCC/RoHS/TUV/UL
1310nm 220m 10G XFP Module LRM ?For 10 Gigabit Ethernet 10gbase-lrm
?
Specification:
|
P/N |
AOX-3192-LRM |
|
Datarate |
10G/ps |
|
Wavelenth |
1310nm |
|
Distance |
220M |
|
Transmitter |
DFB |
|
Receiver |
PIN |
|
Media |
MMF |
|
DDM/DOM |
YES |
|
Connector |
LC |
|
Application |
Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64 |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
AscentOptics/Neuter, OEM |
10G XFP LRM 1310nm 220m Multi-mode Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64
?
Description:
XFP modules are?hot-swappable?and?protocol-independent. They typically operate at?near-infrared?wavelengths?(colors) of 850?nm, 1310?nm or 1550?nm. Principal applications include?10 Gigabit Ethernet, 10 Gbit/s?Fibre Channel,?synchronous optical networking?(SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s?Optical Transport Network?(OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense?wavelength-division multiplexing?techniques. They include digital diagnostics that provide management that were added to the SFF-8472 standard. ?XFP modules use an LC?fiber connector?type to achieve high density.
The AscentOptics 10G XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Features
10Gb/s serial optical transceiver in compliance with IEEE 802.3ae, ITU-T G709, and ? 10G FC. Uncooled 1310nm DFB transmitter and PIN photodiode receiver XFP mechanical interface with bail latch and hot pluggable XFI High Speed Electrical Interface 2-wire interface for management and digital diagnostic monitor Low power consumption < 1.8W.? Single +3.3V power supply advanced firmware allowing customer specific information to be stored in transceiver RoHS compliant All-metal housing for superior EMI performance no reference clock neededApplications
10GE Ethernet switches and routers 10GE Storage SONET(OC-192)/SDH(STM64) line cardAscentOptics 10G XFP
| P/N | Data Rate | Distance | Wavelength | Media | Connector |
| AOX-8192-SR | 10G/ps | 300M | 850nm | MM | LC |
| AOX-3192-LR | 10G/ps | 10KM | 1310nm | SM | LC |
| AOX-3192-LRM | 10G/ps | 220M | 1310nm | MM | LC |
| AOX-5192-ER | 10G/ps | 40KM | 1550nm | SM | LC |
| AOX-5192-ZR | 10G/ps | 80KM | 1550nm | SM | LC |
| AOX-CXXXX-R40 | 10G/ps | 40KM | CWDM XXXXnm | SM | LC |
| AOX-CXXXX-R80 | 10G/ps | 80KM | CWDM XXXXnm | SM | LC |
| AOX-DXX-R40 | 10G/ps | 40KM | DWDM CHXX |
