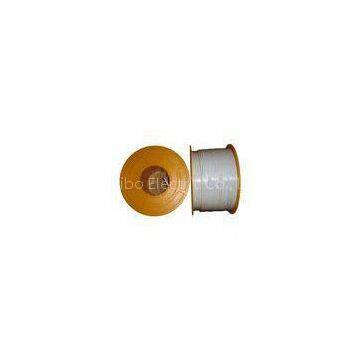

CCS Conductor, 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket, CATV Broadband Video Cable

Brand Name	Libo		Place of Origin	China
Model Number	RG11 UV stabilized jacket

Delivery Time:Within 10 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

CCS Conductor, 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket, CATV Broadband Video Cablel Cable
?

Description & Specifications:

This CATV Broadband Video Cable is with UV Stabilized PVC Jacket, which?has outstanding performance on keeping white color jacket never to change to be?yellow color.

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 59% braid, UV stabilized PVC jacket as defined in UL 1581, paragraph 1200, reference standard for Electric Wire, Cables and Flexible Cords.

Center conductor:

14 AWG copper clad steel

Nominal diameter: 0.064 inches (1.63mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.280 inches (7.11mm)

Shield:

1st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.287inches (7.29mm)

2nd shield: 0.15m aluminum braiding wire, 59% coverage.

UV stabilized PVC jacket:

Nominal diameter over jacket: 0.40inches 10.16mm)

Nominal jacket thickness: 0.042inches (1.07mm)

Electrical properties:

Impedance: 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.38	1.25
55MHZ	0.96	3.15
83MHZ	1.18	3.87
187MHZ	1.75	5.74
211MHZ	1.90	6.23
250MHZ	2.05	6.72
300MHZ	2.25	7.38
350MHZ	2.42	7.94
400MHZ	2.60	8.53
450MHZ	2.75	9.02
500MHZ	2.90	9.51
550MHZ	3.04	9.97
600MHZ	3.18	10.43
750MHZ	3.65	11.97
865MHZ	3.98	13.05
1000MHZ	4.35	14.27

Applications:

RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.

Competitive Advantage:

Outstanding anti-interference effectiveness and excellent transmission reliabilities. Low cost and it is easy to install. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China. Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.
