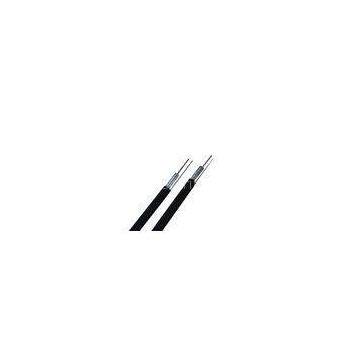

UV Stablized Jacket RG Type CATV Coaxial Cable, high quality RG11 Coaxial Cable With Messenger

Brand Name	Libo		Place of Origin	China
Model Number	RG11 with messenger

Delivery Time:Within 10 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

UV Stablized Jacket RG11 Type CATV Coaxial Cable, high quality RG11 Coaxial Cable With Messenger

Shield:

1st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.287inches (7.29mm)

2nd shield: 0.16mm aluminum braiding wire, 54% coverage.

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 54% braiding coverage, PVC jacket. Oxygen free copper inner conductor is also availiable for different option.

Center conductor:

14 AWG copper clad steel

Nominal diameter: 0.064 inches (1.63mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.280 inches (7.11mm)

PVC Jacket:

Nominal diameter over jacket: 0.40inches 10.16mm)

Nominal jacket thickness: 0.042inches (1.07mm)

Messenger:

Galvanized steel: 1.3mm or 1.8mm

Electrical properties:

Impedance: 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.38	1.25
55MHZ	0.96	3.15
83MHZ	1.18	3.87
187MHZ	1.75	5.74
211MHZ	1.90	6.23
250MHZ	2.05	6.72
300MHZ	2.25	7.38
350MHZ	2.42	7.94
400MHZ	2.60	8.53
450MHZ	2.75	9.02
500MHZ	2.90	9.51
550MHZ	3.04	9.97
600MHZ	3.18	10.43
750MHZ	3.65	11.97
865MHZ	3.98	13.05
1000MHZ	4.35	14.27

Applications:

RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.

Competitive Advantage:

Outstanding anti-interference effectiveness and excellent transmission reliabilities. Low cost and it is easy to install. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China. Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.
