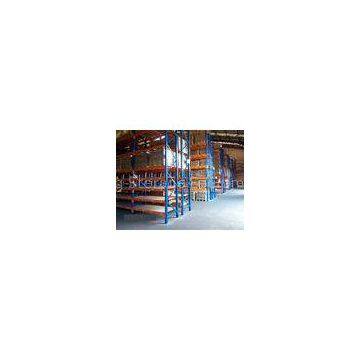

Industrial Heavy Duty Narrow Aisle Pallet Racking Safety for Warehouse Storage

Brand Name	Weitelong		Place of Origin	China
Model Number	WTL-VNA-003

Delivery Time:20 to 30 days
Certification:ISO9001:2008

Industrial Heavy Duty Narrow Aisle Pallet Racking Safety for Warehouse Storage

Quick Detail:

Industrial Very Narrow Aisle(VNA) Pallet Racking for Warehouse Storage

● Great cubic utilization

● 100% accessibility to individual pallets

● Improved speed of access and retrieval

● Mechanical Handling Equipment

● Specialist high cost machine-requires good floor surface.

● Operates within guide rails or wire induction guidance system which operates to the height of about 12m

● Good stock rotation

● Good order picking, 100% selectivity

● Fast picking rate

● Good product protection

● Average floor area utilization

● 50% net pallet area ㎡ usage of overall warehouse area (based on the above diagrammatic illustration)

Description:

????? Industrial Very Narrow Aisle(VNA) Pallet Racking for Warehouse Storage

????? In this case loading and picking is mostly done by rail or wire guided Swing Reach and Picker Trucks.? All picking locations can be accessed throughout the full height and length of the system.

????? Pallets can be stored to greater height for more effect use of storage space, but very tall installations may require a ‘super flat\'? floor to allow safe equipment access.

????? Benefits & Features of Very Narrow Aisle (VNA) Pallet Rack

????? Maximizes storage potential by reducing aisle space to a minimum

????? Reduces wasted space by using the vertical height of a building

????? All pallets are accessible to the lift trucks

????? Less product damage and fewer picking errors occur than with bulk stacking

Specifications:

● Maximum Height(Upright/Pillar):	2,000mm - 12,000 mm?
● Max Width/Length(Beam):	Up to 3,900 ,m?
● Max Depth(Upright frame):	Up to 1,500 mm
● Max Weight:	1000kg - 3000 kg / layer?
● Mobility:	The height of each beam can be adjusted ?by 75mm of pitch freely.
● Surface finish:	Powder coating which is characterized by surface-smoothly, antirust,anti-corrosive, non-toxic.
● Material:	High quality steel, such as Q235B etc.
● Color:	Blue/Orange/Gray/others

Competitive Advantage:

Good stock rotation Good order picking: 100% selectivity Fast picking rate Good product protection 50% net pallet area usage of overall warehouse area Limited pallet redundancy as system can run at 95%+ capacity Uses guide rails or wire guidance for fast movement in aisle Ideal for high- bay application Increase in warehouse area usage via minimal aisle width Unrestricted access to stock

Remarks

A)?Specification?of?the?racking:Height*Width/Length*Depth

B)?How?many?bays?and?layers

C)?Load?capacity?of?each?layer

D)?RAL?color

E)?Warehouse?layout?if?possible(Auto?CAD?format)
