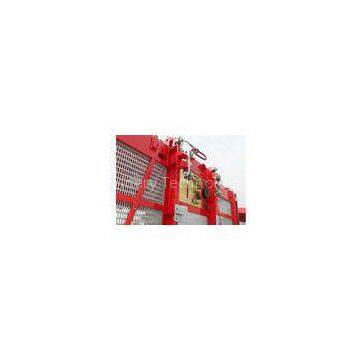

CE / ISO Construction Material Hoist 1000kg for Bridge , Underground Project
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Red Painted Double Cage Building Site Hoist Equipment 1600kg , Building Materials Lift
-
Industrial Elevators and Lifts Cage Hoists , Passenger and Material Hoisting Machinery 1600kg
-
Red / Blue Customized Industrial Elevators With Galvanized High efficiency
-
Painted Industrial Lift 2000kg 3 1.3 2.5 m , Building Material Handling Hoist
-
High Speed Passenger Hoist for Construction Site Personnel / Material Hoisting
-
Galvanized Rack And Pinion Hoists CH300 with Single Cage , 300kg High Capacity
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | SC-series |
Product Description
Certification:CE,ISO
DOL / FC Construction Material Hoist 1000kg With Mast Hot-dip Galvanized CE / ISO
Quick?Detail:
|
Name |
other name |
Brand?Name |
Control |
|
Construction?Lift |
Construction?Lift?SC?100 |
BORUIDA |
DOL?and?FC |
|
Loading?Capacity |
1000kg |
Certificate |
CE |
Description:
Construction Lift SC 100 is installed and dismounted conveniently and can grow as high as the building grows height.The Construction Lift has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.It is efficient and safety vertical transporting equipment
Applications:
SC serialization of products Construction Lift is a Rack and Pinion EL. Construction Lift widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
Specifications
Standard?technical datas of?single cage?:
|
Parameter |
SC100 |
SC160 |
SC200 |
SC270 |
SC320 |
|
Rated |
1000 |
1600 |
2000 |
2700 |
3200 |
|
Rated?lifting?speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated?passenger?number |
12 |
18 |
24 |
30 |
38 |
|
Max.?lifting?height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine?power(kW) |
2*9.5 |
2*11 |
2*13 |
3*18.5? |
3*22 |
|
Cage?inner?dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Cage?weight?(kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section?weight |
145 |
145 |
163 |
163 |
163 |
|
Mast?section?dimension?(mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety?device?type |
?SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1.4? |
