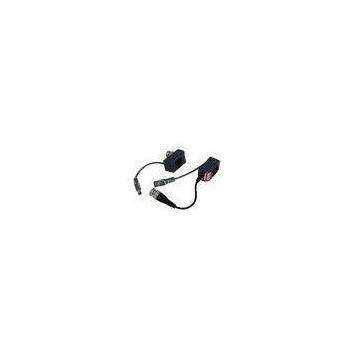

1 Channel Video Power Balun

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Chinasky		Place of Origin	China
Model Number	VB213&A

Product Description

Delivery Time:5-12 working days
Certification:CE, RoHS

1. Frequency Response: DC?to?5MHz

2. Channel: 1 CH

3. Video Format: NTSC,?PAL?,?and?SECAM

4. Connector Video: Male BNC, RJ45

5. CMRR: 60?dB

6. Attenuation: 0.5dB Typ

7. Certification: CE,RoHS

Description:

Features:

Power-Video signals are routed via UTP and RJ45. The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire 60 dB crosstalk and noise immunity Compact size and easy installation Outstanding interference rejection, transient protection Save cable cost 30%-50% Voltage of power: 12V~36V

Technical specifications:

Video Format	NTSC,?PAL?,?and?SECAM?
Frequency Response	DC?to?5MHz
Attenuation	0.5dB?typ
CMRR	60?dB?
Impedance	Coax, Male BNC	75?ohms?
RJ45	100?ohms
Working environment	Working?Temperature??	-10℃?to?+50℃
?Storage?Temperature??	-30℃?to?+70℃
Humidity?	0?to?95%
Wire Type	UTP5
Connector	Male BNC, RJ45
Power	No
Case	ABS Plastic
Weight	70g/pair

The clamping order of the modular plug is shown as follows (TIA/EIA-568B):

Power-Distance Chart:

Using PVD products, cameras can be powered at extended distances, please refer to the ctart below for more information.

Power Supply Voltage	24VAC	28VAC	13VDC
Resultant Camera Voltage	21VAC	21VAC	10VDC
100ma Camera	300m	700m	300m
300ma Camera	100m	230m	100m
500ma Camera	60m	140m	60m
