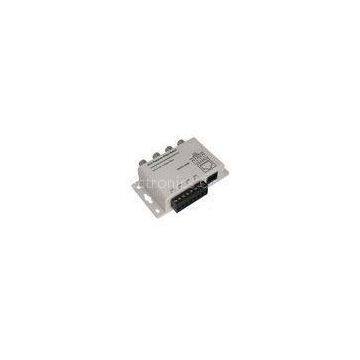

4 Channel Passive Video Balun Transceiver , CCTV UTP Video Balun Cat5

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Chinasky		Place of Origin	China
Model Number	VB204P

Product Description

Delivery Time:5-12 working days
Certification:CE , CE, RoHS

4 Channel Passive Video Balun Transceiver , CCTV UTP Video Balun Cat5
?
?
Quick Details:
?
?
1. Channel: 4 CH
2. Impedance:
Coax, Male BNC: 75?ohms
RJ45/Terminal Block: 100?ohms
3. Transmission Distance: 330m
4. UTP Port: RJ45 and Terminal Block
5. Compatible: NTSC,?PAL,?and?SECAM?
6. Frequency Response: DC?to?8MHz
7. Certification: CE , CE, RoHS
?
?
?
Description:
?
The video balun VB204P is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It’s easy to install and cost effective, and does not require power. Working with an 8-core CAT-5 can transport 4 channel video signals.
Its crosstalk and noise immunity ensure quality video signals.
?
?
?
Features:
?

Full-motion?CCTV?video?at?distances?up?to?330m?when?used?with?any?passive?transceiver Up?to?1500m?with?any?active?UTP?video?receiver Outstanding interference rejection, transient protection High quality image It can work as video transmitter or video receiver Compact?size?and?easy?installation

?
Technical specifications:
?

Video Format	NTSC,?PAL,?and?SECAM?
Frequency Response	DC?to?8MHz
Attenuation	0.5dB?typ
CMRR	60?dB?
Impedance	Coax, Male BNC	75?ohms?
RJ45/Terminal Block	100?ohms
Working environment	Working?Temperature	-10℃?to?+70℃
?Storage?Temperature	-30℃?to?+70℃
Humidity?	0?to?95%
Wire Type	UTP5
Connector	Female BNC, RJ45 and Terminal Block
Power	No power required
Case	ABS plastic
Dimension	105mm80mm29mm

?
Connection method:
?
Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure),connect the clamped modular plugs to the RJ45 sockets,connect the coax to the connection terminal.

?
Application Diagram:
?
