Home > Products > Passive Video Balun > RJ45 4 Channel Passive Video Balun For CCTV Camera , UTP Video Receiver

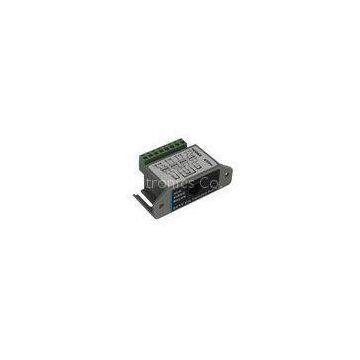

RJ45 4 Channel Passive Video Balun For CCTV Camera , UTP Video Receiver
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Chinasky | Place of Origin | China | |
| Model Number | VB804B |
Product Description
Certification:CE , CE, RoHS
RJ45 4 Channel Passive Video Balun For CCTV Camera , UTP Video Receiver
Quick Details:
1. Impedance:
Coax, Male BNC: 75?ohms
RJ45/Terminal Block: 100?ohms
2. Compatible: NTSC,?PAL,?and?SECAM?
3. Frequency Response: DC?to?8MHz
4. Channel: 4 CH
5. Transmission Distance: 330m
6. Certification: CE , CE, RoHS
Description:
The video balun VB804B is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It’s easy to install and cost effective, and does not require power. Working with 8-core CAT-5 can transport 4 channel video signals.
Its crosstalk and noise immunity ensure quality video signals.
Features:
Full-motion?CCTV?video?at?distances?up?to?330m?when?used?with?any?passive?transceiver Up?to?1500m?with?any?active?UTP?video?receiver Outstanding interference rejection, transient protection High quality image It can work as video transmitter or video receiver Compact?size?and?easy?installation With 4ch terminal blockTechnical specifications:
|
Video Format |
NTSC,?PAL,?and?SECAM? |
|
|
Frequency Response |
DC?to?8MHz |
|
|
Attenuation |
0.5dB?typ |
|
|
CMRR |
60?dB? |
|
|
Impedance |
Terminal Block |
100?ohms |
|
RJ45 |
100?ohms |
|
|
Working environment |
Working?Temperature |
-10℃?to?+50℃ |
|
?Storage?Temperature |
-30℃?to?+70℃ |
|
|
Humidity? |
0?to?95% |
|
|
Wire Type |
UTP5 |
|
|
Connector |
Terminal Block, RJ45 |
|
|
Power |
No power required |
|
|
Case |
ABS plastic |
|
|
Dimension |
75mm*50mm*25mm |
|
|
Weight? |
120g/pc |
Connection method:
Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure),connect the clamped modular plugs to the RJ45 sockets,connect the coax to the connection terminal.
Application Diagram:
