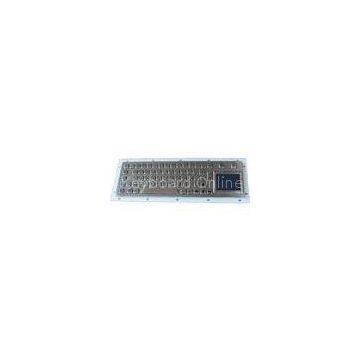

long stroke touchpad kiosk metal keyboard with panel mounting

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IKB-MKB		Place of Origin	China
Model Number	K-TEK-A343-TP

Product Description

Delivery Time:ASAP Within 2 weeks upon payment confirmed
Certification:CE,FCC,ROHS,IP65,IP68,ESD

long stroke touchpad kiosk metal keyboard with panel mounting
?
Special Features:
?
1. RoHS, CE, FCC, IP65, ESD
2. 68 keys IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with?sealed & ruggedized tough touchpad with scroll function (optional)
3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
4. Rear panel mounting solution
5. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level
6.?Ease of customizing with multiple languages, to accommodate foreign or custom variants
7. Complete electronic modules including controller in close consultation with our customers are available
8. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver
?
Applications:
?
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
?
Specifications:
?

MECHANICAL DATA
Key	69 keys, super quality brushed stainless steel
Key top style	Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar.
Key travel	2.0mm
Switch life	more than 10 million of operations
Actuation Force	0.6N 0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N 0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate	1.5mm thickness super quality brushed stainless steel
Back Plate	3.0mm thickness brushed & oxidized aluminium
G.W.	1.70KGs
Dimensions	343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)

TOUCHPAD
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution	40 counts/mm
X/Y position reporting	?Relative
?Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5 V DC ±0.25V
Current rating (active mode)	17 mA

ELECTRICAL DATA
Supply Voltage	+5V DC 5%
Current Rating	appr. 20mA
? EMC Standard:	It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010； IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at + 40oC	21 days, IEC 60512-6
Dry heat test at + 85oC	10 days, IEC 60512-6
