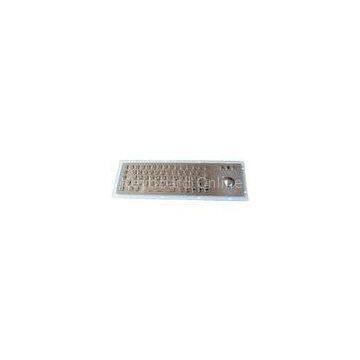

vandal proof metal kiosk keyboard long stroke / illuminated ultrathin keyboard

vandal proof metal kiosk keyboard long stroke / illuminated ultrathin keyboard

Quick Details:

1. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball

2. 38.0mm trackball, 3 kinds trackball module optional

3. CE,RoHS,FCC certified,IP65 test report.

Descriptions:

1. 69 Keys Compact Format IP65 Vandal Proof Stainless Steel industrial Keyboard ?

2. with 38.0mm stainless steel trackball module

3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling

? ?for fast and accurate data input without any noise

4. one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet

5. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling

6. with rear panel mounting solution.

7. 3 optional trackball modules:

-----IP65 static mechanical trackball module with 400 DPI,

-----IP68 dynamic optical trackball module with 800 DPI

-----IP68 dynamic laser trackball module with 1200 DPI

Special Features:

1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,

functionality, longevity and high protection level.

2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially

under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

3. Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily &

tightly mounting to enclosure or panel.

4. An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any

noise. With firm tactile perception for comfortable operation

5. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent

lettering rub-off.

6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key

covers.

7. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

8. Complete electronic modules including controller in close consultation with our customers are available.

10. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

11. Optional Trackball Modules:

IP65 static mechanical trackball module with 400 DPI,

IP68 dynamic washable optical trackball module with 800 DPI,

IP68 dynamic washable laser trackball module with 1200 DPI,

Pls.see below table:

Applications:

This Keyboard is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:
