ANSI carbon steel flanged gate valve(sale@bjvalves.com)

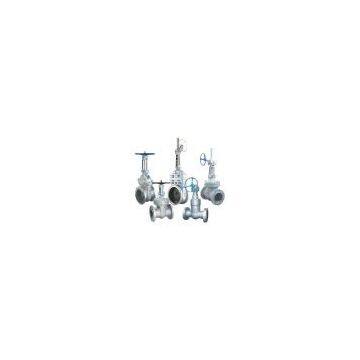

ANSI carbon steel flanged gate valve

ASTM A216 WCB flanged gate valve
Features:
Nace Mr-01-75
1) Product: cast carbon steel wedge gate valve ASTM A216 WCB flanged gate valve
2) Parts included: outside screw and yoke, bolted bonnet, rising stem, solid wedge, renewable seats, 13% chrome stainless steel trim
3) Alternative body and trim materials are available
4) Flexible wedge is fitted on standard valves (6 - 12"), and can be
furnished to replace the solid wedge of other sizes
Butt welded(BW) end: conforms to BS 1560 and ANSI B16.5 standards
Flanged(FR/RTJ) connection: to ANSI B16.5
6) Material:Carbon steel (C.S), forged steel, stainless steel(S.S), alloy steel
wcb, wc6, wc9, lcb, lcc, cf8, cf8m, cf3, cf3m c5, zg15crmov, 12crmov,, 304, 304l, 316, 316l
1.0345/1.0425//1.4301/1.4306/1.4401/1.4404./F11/F22/F5/F9, LCB, LC2, CN7M etc.
Construction type: Bolted Bonnet (150lbs-600lbs), Pressure Seal Bonnet:class900, class1500, class2000, class2500, class3500
8) Size: 2 – 18"
9) Class: 150 – 3500lbs
Inner packing: Plastic package
Business focus: Valves, Pipes, Fittings, Flange, Elbow
*******************************************
