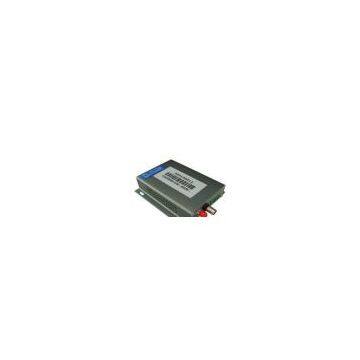

Sell 1V Video Optical Transmitter

Place of Origin	China

Model No.:OM610-1V2A4D
Product Origin:China
Brand Name:OLYCOM
Price Terms:EXW, FOB
Payment Terms:T/T
Certification:CE, FCC, ISO9001
Description:Specifications: Olycom's digital OM610-1V-2A-4D-E single-mode series is a high quality, 8bit digital and non-compressed 4 channel video (8ch system with WDM arrangement), audio (2), data (4) and Ethernet (contact closure (8)) transmission system on one single-mode fiber up applicable for distances from 20 to 120km. The system provides transparent transmission of PAL, NTSC and SECAM video signals, as well as supporting formats such as S-video for Y / C transmission. All units in the range have enhanced management functions for control, and hardware / signal alarms, as well as having LED diagnostics for quick monitoring of signals and overall system operation. The management port allows local or remote (in-band connection via fiber) configuration and monitoring of OM610-1V-2A-4D-E units. There are various models in the range depending on the requirements for video with either uni- or bi-directional data / audio / cc transmission as required. The OM610-1V-2A-4D-E is a high quality reliable product to fulfill your optical fiber video, data, audio and cc transmission requirements. Key features: 8bit digitally encoded modulation NTSC, PAL, and SECAM compatible Surface mounting technology 1 BNC I/O video connector DE-15 high density audio / data connector ST and FC optical connector 1 video, DIP selectable audio, data, and contact closure Manchester / bi-phase, RS-232, RS-422, RS-485 (2 and 4 wires) 600 Ohm balance / unbalance, 10,000 Ohm unbalance, 600 Ohm unbalance audio DIP switch activation of termination resistors 10dB budget with 50 / 125µ 13dB budget with 62.5 / 125µ 23dB budget with single-mode fiber No user adjustments Hot swappable rack-mount cards Automatic re-settable fuses Short circuit protection Highest optical dynamic range Product information: Optical: Output / input wavelength: 1310 / 1550Nm (SM), 850 / 1310 / 1550Nm (MM), 1270 - 1610Nm (CWDM) Output power: 0 ~ -5dBm, -8 ~ -15dBm Received Power (min.): -24dBm Video: Number of channels: 1 Sampling frequency: 15MHz Sampling resolution: 8 / 10bit Output / input signal levels: 1Vp-p 75 Ohm Input overload level: 1.5Vp-p 75 ohm Input bandwidth: 5 - 8MHz Differential gain: ≤1% Differential phase: ≤1° S/N: ≥71dB Audio: Number of channels: 0 - 2 Sampling frequency: 48KHz Sampling resolution: 24bit Input impedance: 10,000 or 600 Ohm Nominal level: 0dBm Frequency response: 20 ~ 23kHz 1dB S/N ratio: ≥78 Data: Number of channels: 1 - 4 Date formats: RS-232 / 422 / 485 (2 or 4) Date rate: 115.2kbps / 300kbps (RS-232), 115.2kbps / 300kbps (RS-422), 115.2kbps / 300kbps (RS-485) Date jitter: 10 - 13 Ethernet: Ethernet protocol: IEEE802.310 / 100Base-T Network speed: 10 / 100M (auto) Connection terminal: RJ45 System: Mean time between failures (MTBF):>100,000hrs Bit error rate: 10 - 9 Electrical: Supply voltage: 12V DC Power: 12W (max.) Mechanical: Dimensions (L x W x H): 118 x 88 x 28mm Environmental conditions: Operating temperature: - 40 ~ 74°C Storage temperature: - 40 ~ 85°C Humidity: 0 - 95% (non-condensing) EMC: GJB151A-97, SC Purchasing information: OM610-1V2A4D(-E): 1V + 2A (bi-direction) + 4D (bi-direction) + E (optional)
