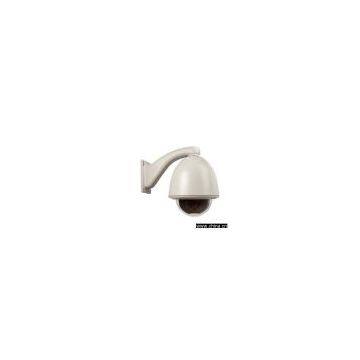

Sell High Speed Dome Ccd Camera

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:S. Will
Price Terms:EXW
Payment Terms:T/T
Certification:CE, FCC
Description:Specifications: 1) Model No.: S.W-S816C 2) Valid resolution (H x V): 752 x 582 pixels 3) Scanning frequency: pan/tilt: 15.625kHz/50Hz 4) Pan resolution: 540TVL 5) Video output scope: 1.0Vp-p 6) S/N ratio: ≥50dB 7) Minimum illumination: 0.7 lux (color); 0.01 lux (black) 8) White balance: auto/manual/B gain settable 9) BLC mode: open/closed BLC mode 10) Focus: 4.1 - 73.8mm 11) View angle: 48 degrees wide, 2.7 degrees far 12) Manual speed: a) Pan: 0.4 - 320°/s b) Tilt 0.4 - 150°/s 13) Preset time: <1s 14) Rotation: 360° continuously rotating pan range, tilt 90° rotating, auto overturn 15) Zoom speed auto control: control speed will auto-adjust according to long or short zoom 16) Zoom multiple: built-in 216x zoom (18x optical x 12x electronic) 17) Presets: 128 18) Long-distance controlling: supports RS485, Manchester, bi-phase, coaxial video 19) Baud rate (RS485): 2,400/4,800/9,600/19,200bps 20) ID range: 1 - 254 21) Operating temperature (indoor/outdoor): 0 - 60°C, -40 ~ 60°C 22) Operating humidity: 0 - 90% without agglomeration 23) Protection level: built-in TVS 1,500W, thunder proof, surge proof and wave protection 24) Power supply: DC 24±4V 25) Power consumption (indoor/outdoor): 10W, 50W 26) Dimensions (H x D): 300 x 231mm 27) Weight: 9.2kg
