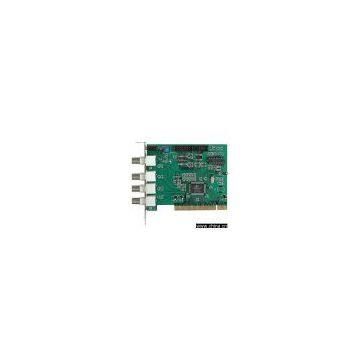

Sell 4 Channel DVR Card

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:S. Will
Price Terms:EXW
Payment Terms:T/T
Certification:CE, FCC
Description:Features: 1) 4 channel video, 1 channel audio input 2) Compression format: MPEG-4 3) Display rate: a) PAL: 25fps b) NTSC 30fps 4) Recording rate: a) PAL: 25fps b) NTSC: 30fps 5) Supports full resolution video (PAL: 768 x 576 pixels; NTSC: 640 x 480 pixels) 6) Supports Internet Explorer browsing 7) Supported OS: Windows 98/2000/XP Specifications: 1) Compression format: MPEG-4 software compression 2) Display and record resolution: 765 x 576 pixels 3) 1 - 4 channel video input, 30f/card, max. 4 cards 4) 1 channel audio input per card, max. 4 channels of audio input 5) 120 - 150MB hard disk space per hour 6) Alarm control a) 16 channels alarm input, 3 channels alarm output b) Automatically records when alarm starts up c) Can control automatic record time when alarm starts up d) Supports motion detection and alarm area setting e) Automatically records when motion detection starts up 7) Network functions a) Supports video signal transmission through LAN, PSTN, ADSL, ISDN b) Supports remote replaying playback record c) Supports remote PTZ control d) Supports Internet Explorer browsing 8) Record and playback a) 1 - 4 channels real-time MPEG4 recording b) Schedule record, manual record, motion detect start record, alarm start record options c) Record frames preset function d) Supports frame capture and electric zoom in/out 9) System requirements a) OS: Windows 98/ME/2000/XP b) CPU: P3 800 or higher c) Memory: min. 128M of RAM (256M required for 16 cameras) d) Hard disk space: 80GB e) Motherboard: based on Intel 815/845 chipset or higher f) VGA card: ATI Rage 128, GeForce 2 or higher e) Windows DirectX 8.0 or above
