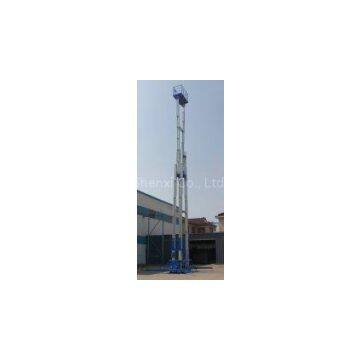

AC / DC Power Electric Mobile Hydraulic Lifting Platform for Station, Airport

FOB Price

Negotiable / Ton

1 Ton(Min.Order)

Supply Ability 0 Ton / Tons per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SHENXI		Place of Origin	China
Model Number	GTWY

Product Description

Delivery Time:8 working days
Certification:CE & SGS

AC / DC Power Electric Mobile Hydraulic Lifting Platform for Station, Airport

Descrition:

　This newly designed product is made of the high strength aluminum alloy which minimum the deviation and swing of the lifting platform. As light as it is, it can display its best lifting capability in a limited space to facilitate the single aerial work.
　　Application: used in factory, hotel, mansion, store, station, airport, stadium, etc.
　　Main Usages: for aerial work such as the installation and maintenance for electric networks, lighting equipments, overhead pipelines and the single work for aerial cleaning
　　Power options; AC 220V (standard configuration), AC 380V power supply, DC power supply and manual pump.

??? -rigid aluminum alloy mast

-light total weight, ease of movement

-only one person needed to operate it

-idler pulley installed between masts, which guarantees a stable raise and lower

-compact lifting mechanism, handy for all narrow corners, within a workplace

-dual protection supporting structure makes it solid and safe while in operation

Specifications:

Product Name	Model	Max height of platform (m)	Maximum operating altitude platform (m)	Rated Load (kg)	Lifting time (m)	Power Voltage V/HZ	Power (KW)	Quality (kg)	Dimensions (m)
Mobile lifting platform aluminum alloy (Single mast)	GTWY4-100	4	5.7	125	0.51*0.55	AC220/50HZ	0.75	185	1.050.881.70
GTWY6-100	6	7.7	125	0.65*0.61	AC220/50HZ	0.75	210	1.200.881.70
GTWY8-100	8	9.7	125	0.65*0.61	AC220/50HZ	0.75	220	1.200.881.98
Mobile lifting platform aluminum alloy (double mast)	GTWY6-200S	6	7.7	200	1.36*0.61	AC220/50HZ	1.5	320	1.480.92.06
GTWY7-200S	7	8.7	200	1.36*0.60	AC220/50HZ	1.5	335	1.480.92.06
GTWY8-200S	8	9.7	200	1.36*0.60	AC220/50HZ	1.5	385	1.480.92.06
GTWY9-200S	9	10.7	200	1.36*0.60	AC220/50HZ
