Product Details
| Brand Name | SHENXI | Place of Origin | China | |
| Model Number | SCD200/SCD200D |
Product Description
Certification:CE & SGS

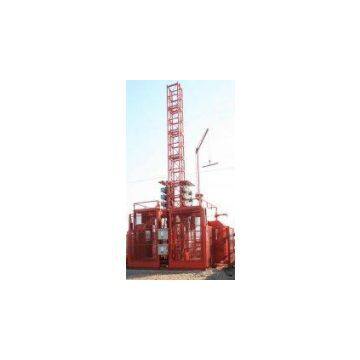

150 m 33 m/min Construction Hoist Elevator Lifting Equipment with YZEJ132M-4 Motor
Descrition:
The building hoist manufactured by shenxi company have the features as good quality, long lift, wide application range and convenient for maintenance. The gearing adopts imported bearing, enameled cable, and oil seal. The electric parts adopt products from world renowned manufactures such as Schneider, Siemens and LG. The racks and pinion adopts special material and heat-treatment technique, which prolong the lift of these parts. The surface of the steel structure can apply paint-spray, Parkerizing baking finish or hot galvanizing treatment according to customer requirements. The cage can be produced and decorated by aluminum molded board, punched-plate or figured aluminum board.
Specifications:
|
Rated Load |
2000/2000 kg*2 |
|
|
Rated Lifting Speed |
33 m/min |
|
|
Max Lifting Height |
150 m |
|
|
Motor |
Type |
YZEJ132M-4 |
|
Power |
3×11 kW |
|
|
Reducer |
Type |
TCW125A-16 |
|
Transmission Ratio |
16 |
|
|
Anti-falling safety device |
Type |
SAJ40-1.2A |
|
Rated Moving Speed |
1.2 m/s |
|
|
Max Height of Free End |
7.5 m |
|
|
Size of Cage ?(L*W*H) |
3.00×1.48×2.26 m |
|
|
Weight of Cage |
1450kg |
|
|
Total Weight |
21040kg |
|
|
Weight of Standard Section |
137 kg |
|
|
Size of Standard Section (Length*Width*Height) |
650×650×1508 mm |
|
|
Elevating Capacity of Powered Boom |
200 kg |
Competitive Advantage:
1.Except for the recommended cage dimension, we could also manufacture cages of other size according to the customer.
2.The cage and the door material can be aluminum molded board, punched-plate, figured aluminum board or other type according to your requirements
3.The mast and the tie-in surface can adopt paint-spray or hot galvanizing treatment
