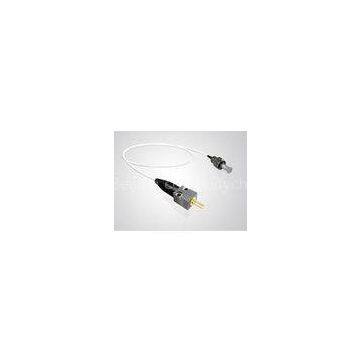

635nm / 70mW / 0.22N.A. Coaxial Packaged Red Medical Diode Laser Module for Medical Use

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BWT		Place of Origin	China
Model Number	K635E03FN-0.07W

Delivery Time:4-8weeks
Certification:ISO9001

635nm / 70mW / 0.22N.A. Coaxial Packaged Red Medical Diode Laser Module for Medical Use

K635E03SN-0.04W /?K635E03FN-0.07W

?
Features:
?

? ?Output power 40mW, 70mW? ?4μm, 105μm fiber core diameter? ?0.13/0.22N.A.? ?Wavelength 635nm

?
?
Applications:
?

? ?Medical use? ?Aiming beam? ?Biochemical analysis

Specifications(25℃)	Symbol	Unit	K635E03SN-0.04W	K635E03FN-0.07W
Optical Data	CW-Output Power	P0	mW	40	70
Center Wavelength	?λc	nm	635
Tolerance of?λ	-	nm	±5
Spectral Width (FWHM)	△λ	nm	<3
Temperature Drift of??λ	-	nm/℃	~0.2
Fiber Data(1)	Fiber Core Diameter	Wc	μm	4	105
Numerical Aperture	N.A.	-	0.13	0.22
Fiber Connector	-	-	SMA-905
Electrical Data	Operating Current	Iop	mA	140
Threshold Current	Ith	mA	50
Conversion Efficiency	η	%	13	22
Slope Efficiency	ηD	W/A	0.44	0.78
Operating Voltage	Vop	V	2.2
Reverse Voltage	Vre	V	2
Others	Operating Temperature	Top	℃	10~30
Storage Temperature	Tst	℃	-20~+80
Expected Lifetime	MTTF	h	>5, 000
Dimensions (fiber and connector not included)	-	mm	8.5×7.5×10.7
Lead Soldering Temperature	Tis	℃	260(10 sec.)

(1)??? Other fibers available upon request..
