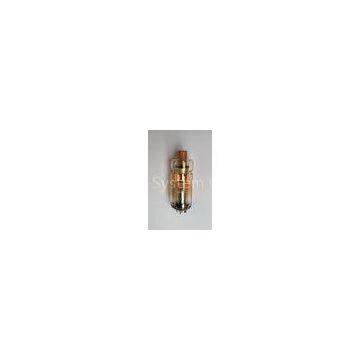

High Vacuum Anode X rays tube , Dental X-ray Tube 0.8mm , 70KV

?High Vacuum X rays tube Dental X-ray Tube ,70V,0.8mm

Quick Detail:

Type:Station anode x-ray tube

Application: For intra-oral dental x-ray unit

Model: KL1-0.8-70

Equivalent to CEI OC70-P

Integrated high quality glass tube

Description:

KL1-0.8-70 Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit.

KL1-0.8-70 tube has one focus.

The integrated high quality tube with glass design has? one? super imposed focal spot and a reinforced anode.

The high anode heat storage capacity ensures a wide range of applications for? intra-oral dental application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.

Applications:

KL1-0.8-70 Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit.

Specifications:

Nominal Tube Voltage…………………………………..….……….……………………….70kV

Nominal Inverse Voltage…………………………….…….……………...……..................85kV

Nominal Focal Spot…………………………………….……...................0.8 (IEC60336/1993)

Max. Anode Heat content………………..……….…………………..….………………7000J

Max. Current Continuous Service…………………………………………………..2mA x 70kV

Max. Anode Cooling Rate………………………………..…………………………………140W

Target Angle…………………………………………………….……….……………………19°

Filament Characteristics…………………………………. ……………..1.8 – 2.2A, 2.4 – 3.3V

Permanent Filtration………..………………………..Min. 0.6mm Al / 50 kV(IEC60522/1999)

Target Material…………………………………………………………………………..Tungsten

Nominal Anode Input Power……………………….……………………………………….840W

Competitive Advantage:

Elevated anode heat storage capacity and cooling

Constant high dose yield

Excellent lifetime
