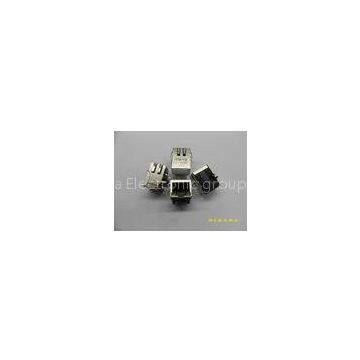

8 Pins Communication RJ45 Connector Jack with Transformer / LED and EMI Tab Down
- T/T L/C D/P D/A
- 7 days
You May Like
-
Shielded RJ45 Connector With Integrated Magnetics , KRJ-180CGYNL Top Entry
-
IEEE 802.3 One Port RJ45 Magnetic Jack with Transformer Filter 1500Vrms Tap Up
-
J0011D01NL Shielded Connector RJ45 with Transformer 10 / 100base-TX 8P8C
-
Receptacle Switch RJ45 with Transformer, PBT Black Housing RJ45 Jack with Single USB
-
Computer RJ45 with Transformer , Integrated RJ45 Connector for Communication
-
Tab Down Transformer RJ45 Jack without Shielded for 10 / 100BASE PLC Port
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-060NL |
Product Description
Certification:SGS、ISO9001-2008、ISO14001-2004
8 Pins Communication RJ45 Connector Jack with Transformer / LED and EMI Tab Down
Product Number:KRJ-060NL
Applications:
? Integrated RJ45 connector main used to :
? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
Descriptions:
10/100BASE?1x1?Tab?Down?Transformer?RJ45? with led and EMI, LED distance 4.06MM? KRJ-060NL
10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with top entry Single port 1X1 Tab-Down RJ45 with internal magnetics ???????????? Internal magnetics are 100% electrically tested for HI-POT and functionality Suitable for CAT5&6 fast Ethernet Cable or better UTP 350uHminimum OCL with 8mA bias current High performance for maximum EMI suppression Minimum 1500Vrms isolation per IEEE 802.3 requirement ?ROHS-6 peak wave solder temperature rating 260℃ Operating temperarure range :0℃ to +70℃ Storage temperature range :-40℃ to +85℃ Number of positions:8 Number of contacts loaded:8 Shield:YES Rohs compliant Length:21.3mm LEDS:YES EMI fingers:YES LEFT LED:Yellow,RIGHT LED:Green Usage:KRJ-060NLMechanical Dimension:(UNIT:mm)
?. XX Tolerance:0.25
.XXX Tolerance:0.13
Material specifications:
Plastic core:Glass fiber filler PBT Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PBT Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel plated???????? Note:RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
Electrical Specifications:? at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
??????????? 30-60MHZ -14.0dBmin
??????????? 60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
???????? 30-60MHZ -35.0dBmin
???????? 60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH? @100KHZ 100Mv 8mA?? DC
Schematic:
LED Specifications:
|
Emitting |
Dominant wavelength(nm) |
Forward voltage |
Forward current |
Type |
|
Green |
570-575 |
1.8-2.4 |
20mA |
Squareness |
|
Yellow |
585-590 |
1.8-2.4 |
20mA |
Squareness |
Competitive?Advantage:
Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?
customer?firstly?,100%?test,?0?defect,?short?lead?time?are?our?best?advantages
