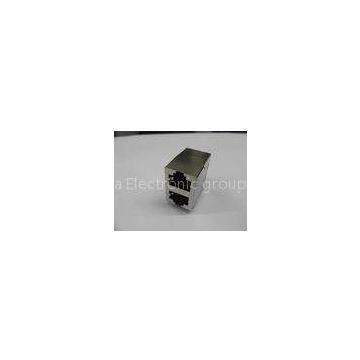

10P8C 2 x 1 RJ45 with Magnetics Transmitter for Filter Rohs Compliant
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom 1000BASE 1 x 2 port Filter RJ45 with Transformer Internal Magnetics Tab Down
-
Right Angle Fiber Optic Transceiver RJ45 Integrated Magnetics with Transformer Filter 1000BASE
-
1 X 4 Port Female RJ45 Connector with led / EMI / Transformer for 10 / 100 / 1000base-TX
-
PCB 4 Port 90 RJ45 with Transformer / RJ45 POE Connector 10 Pins OEM
-
1 port 10 / 100base LED RJ45 with Transformer 90 Degree Dip L / G , R / Y
-
Internal Magnetic 8P8C RJ45 with Transformer for Net Bridge , Metal Shell
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-2011NL |
Product Description
Certification:SGS、ISO9001-2008、ISO14001-2004
10P8C 2 x 1 RJ45 with Magnetics Transmitter for Filter Rohs Compliant
Part number:KRJ-2011NL
RJ45?,in?order?to?keep?good?touch?between?gold?finger?and?crystal?head,should?paint?the?gold?on?the?
surface,there?is?6u,15u,30,50u,usually?use?6u,according?to?customer’s?request?and?
cost?to?proceed,? gold?finger?insert?and?pull?life?should?be?750?times?above.
Descriptions:
1000BASE?2x1?Tab?Down?Transformer?RJ45?? without? led and? EMI? KRJ-2011NL
10/100/1000Base-Tx RJ45 2 port 2X1 Side Entry (Right Angle) without LED 2 port 2X1 RJ45 with internal magnetics ???????????? Internal magnetics are 100% electrically tested for HI-POT and functionality 350uHminimum OCL with 8mA bias current High performance for maximum EMI suppression Minimum 1500Vrms isolation per IEEE 802.3 requirement ?ROHS-6 peak wave solder temperature rating 260℃ Operating temperarure range :0℃ to +70℃ Storage temperature range :-40℃ to +85℃ Number of positions:10 Number of contacts loaded:8 Shield:YES Rohs compliant Length:21.3mm LEDS:NO EMI finger:NO Usage:KRJ-2011NLMechanical Dimensions:(UNIT:mm)?
. XX Tolerance:0.25
.XXX Tolerance:0.13
PCB Layout Mouting Hole:
. XX Tolerance:0.25
.XXX Tolerance:0.13
Specifications:
Material specifications:
Plastic core:Glass fiber filler PBT Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PBT Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel platedElectrical Specifications:? at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
??????????? 30-60MHZ -14.0dBmin
??????????? 60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
???????? 30-60MHZ -35.0dBmin
???????? 60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH? @100KHZ 100Mv 8mA?? DC
Schematic:
Applications:
??Integrated?RJ45?connector?main?used?to?:
??10/10/1000M?net?card,PCMCIA?net?card,USB?Hub,network?switch,router,fiber?optic?transceivers,
optical?transceiver,IP?phone,internet?set-top?box,internet?camera,net?bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL?and?so?on.
For example:
Competitive?Advantage:
Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?
customer?firstly?,100%?test,?0?defect,?short?lead?time?are?our?best?advantages.
