Product Details
| Brand Name | MITECH | Place of Origin | China | |
| Model Number | HRS-150 |
Product Description
Digital Rockwell Hardness Tester, NDT HardnessTesting Equipment HRS-150

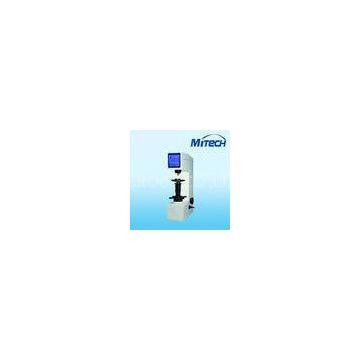

HRS-150 digital Rockwell Hardness Tester
Description:
HRS-150 digital Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure. It mainly functions are as follows: 1. Selection of Rockwell hardness scales, 2. Choice of plastics Rockwell scales (special requirement, supply accord to sales contract), 3. Exchange hardness values among hardness scales, 4. Output the results of hardness measurement with printer, 5. RS-232 hyper terminal setting is with good reliability, excellent operation and easy watching.
Applications:
Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy, bearing steel, carburized steel sheet, etc.
Specifications:
|
Rockwell Scales |
HRA, HRB, HRC, HRD, HRE, HRF,HRG,HRH,HRK |
|
Initial Testing Force |
10kgf (98N) |
|
All Testing Force |
60kgf (588N), 100kgf (980N), 150kgf (1471N) |
|
Exchange Scales |
Superficial Rockwell,Brinell,Vickers |
|
Indication of Hardness Value |
Digital Display with Large LCD Screen |
|
Data Output |
Inside Printer and RS-232 Interface |
|
Duration Time |
0~60sec |
|
Overall Dimension |
520×240×720mm(L×W×H) |
|
Net Weight |
80kg |
|
Max Height of Speciment |
170mm |
|
Max depth of speciments |
165mm |
|
Power supply |
AC220V±5%,50~60Hz |
|
Carried Standard |
GB/T230(1.2) Chinese Standard |
|
Standard Accessories |
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, HRC and HRB Hardness Blocks 2pcs, RS-232 Interface, Power Cable, etc. |
